| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE, ISO, SGS |
| Model Number: | FSJ-420A |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Key Selling Points: | Fully Automatic, High-accuracy | Equipped With Gas Source: | 0.4-0.6mpa Clean And Stable Gas Source |
| Packaging Material: | Plastic | Warranty: | 1 Year |
| Function: | Filling, Sealing, Slitting, Give Pouch | Core Components: | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox, Other |
| Voltage: | 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
| High Light: | 220VAC Liquid Pouch Packing Machine,50BPM Liquid Pouch Packing Machine,1000ml soy sauce packing machine |
||
milk, cream, water, soy sauce, Sauces, jam, Paste and water liquid pouch packing machines
Technical parameters:
| Model | FSJ-420A |
| Bag length | 50-300 mm |
| Bag width | 50-200 mm |
| Power supply (VAC) | 220V |
| Power (KW) | 2.5Kw |
| Max width of roll film | 420 |
| Packing speed | 5-50 Bag/min |
| Measuring range | 10-100,50-500,100-1000 ml |
| Air consumption | 0.65mpa |
| Dimensions (MM) | 3500x1300x1650 |
| Net weight (KG) | 620 |

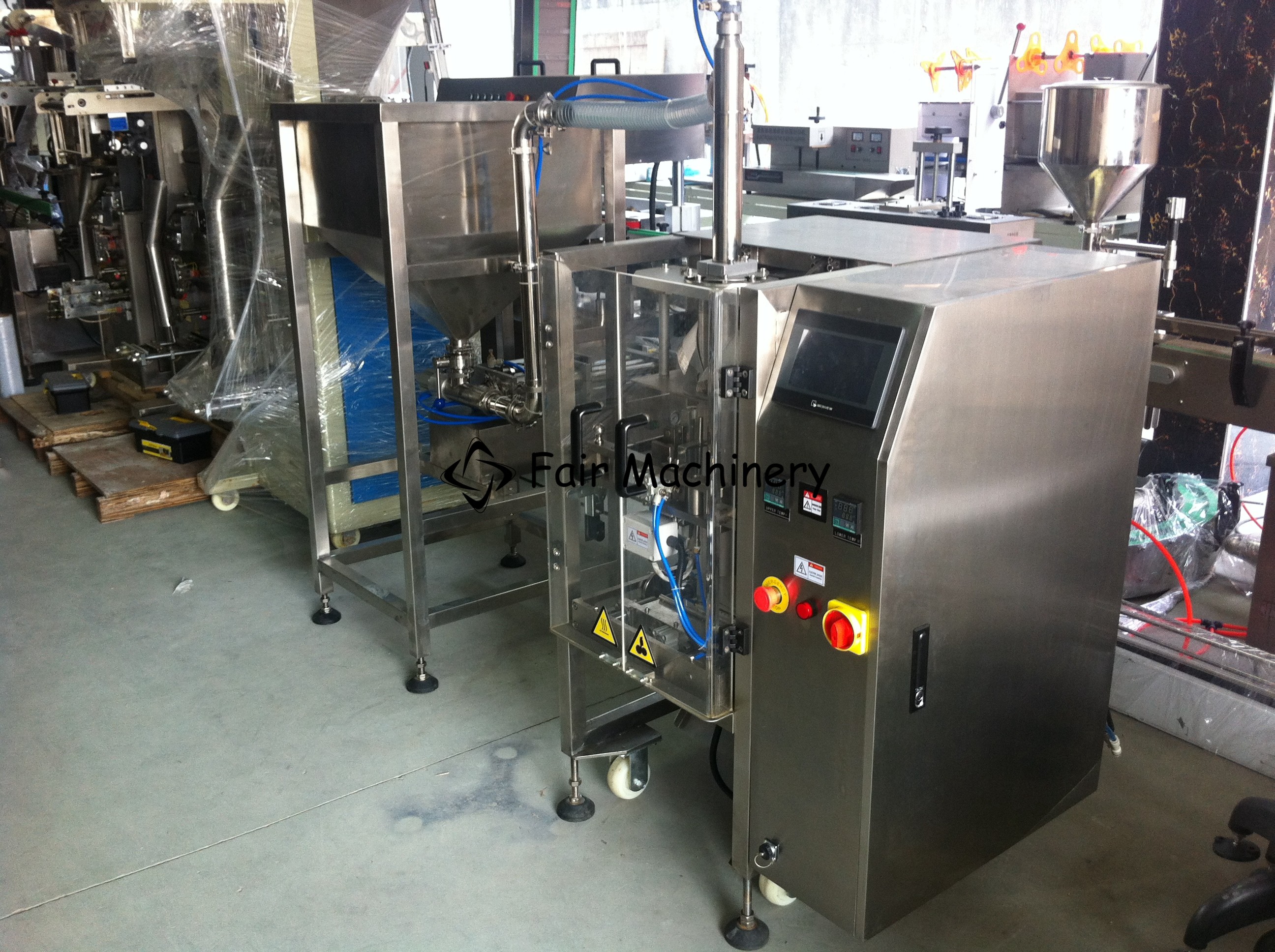

Front view:
