Detail Information

Material:	304 Or 316 Stainless Steel	Automatic Grade:	Semi-Automatic
Key Selling Points:	Easy Operation, Low Price Cost	Nozzles:	1
Equipped With Gas Source:	0.4-0.6mpa Clean And Stable Gas Source	Driven Type:	Pneumatic
Application:	Food, Beverage, MEDICAL, Chemical	Filling Material:	Shampoo, Honey, Toothpaste, Beer, OTHER, Milk, Water, Oil, Juice
Packaging Type:	CANS, Bottles, Stand-up Pouch	Packaging Material:	Plastic, Metal, Glass, OTHER
High Light:	GMP Shampoo Filling Machine , 0.1m3/Min Shampoo Filling Machine , 5000ml liquid paste filling machine

Product Description

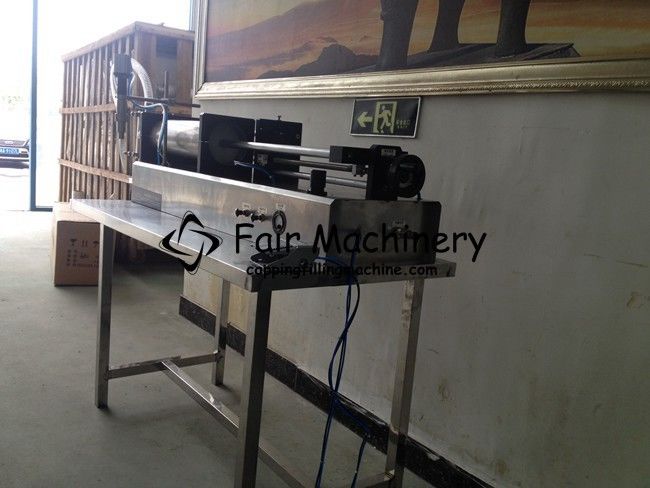

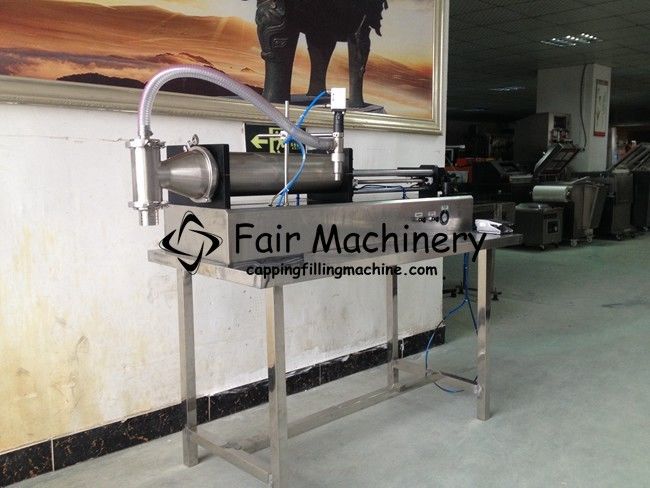

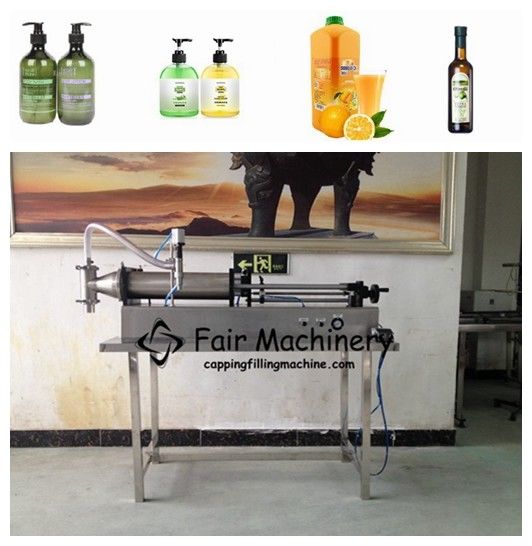

Horizontal Shampoo Sauce Liquid Paste Semi Automatic Filling Machine

These series of filling machines are very popular in reasonable structure, compact size, reliable performance, accurate messuring and easy operation.

The power part adopts pneumatic structure and all adopt EMC pneumatic components. The material contact parts are made of 304/316L stainless steel and meet GMP certification requirements.

The filling amount and filling speed can be arbitrarily adjusted within the range of the model according to the user's needs, and the filling accuracy is high. The filling head is made of anti-drip and anti-drawing device.

Functional imaging:

1. This machine adopts compressed air control drive, so it is especially suitable for use in explosion-proof and humid environment, with high safety;

2, due to the use of pneumatic control, and the use of mechanical positioning, so the filling accuracy is high, the accuracy can be controlled at ± 0.5%, taking water as an example;

3, the use of screw, counter, so that the filling volume is adjusted accurately, and can be visually reflected in digital form;

4. Five-way valve that can be used for both paste and liquid. There is no dead angle in the five-way valve, easy to clean;

5, the whole machine is 304 stainless steel, the material contact parts are made of 304/316 stainless steel material, in line with GMP requirements;

6. There are anti-drawing and anti-drip devices on the filling head, and the filling nozzle is equipped with two sizes;

7, filling speed is fast, can be filled 30 times per minute, taking 500ml of water as an example, the filling accuracy is ± 0.5%

Note: This machine can choose the custom filling capacity, the maximum filling can be 5L, suitable for liquid, semi-fluid materials such as liquor, lubricating oil, pesticide, shampoo, shower gel, hand soap and so on.

Technical parameters:

Model	GF-100	GF-500	GF-1000	GF-5000
Operating Voltage	Subject to air compressor	Subject to air compressor	Subject to air compressor	Subject to air compressor
Filling capacity	3-60ml	50-500ml	100-1000ml	500-5000ml
Filling speed	1-50 B/Min	1-40 B/Min	1-30 B/Min	1-10 B/Min
Air pressure	0.1m3/min	0.1m3/min	0.1m3/min	0.1m3/min
Dimensions	800×440×480mm	900×400×580mm	1000×440×680mm	1500×440×780mm
Net weight	18KG	25KG	30KG	40KG

Control panel:

Sample style:

Tag:

Place of Origin:	China
Brand Name:	Fair Machinery
Certification:	CE
Model Number:	GF-5000

Minimum Order Quantity:	1
Packaging Details:	wooden packaged
Delivery Time:	10-20 days
Payment Terms:	T/T, Western Union. L/C
Supply Ability:	100 pcs per month
