| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE, ISO, SGS |
| Model Number: | FP-150C |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Automatic |
|---|---|---|---|
| Key Selling Points: | Automatic, High-accuracy, Easy To Operate | Application: | Food, Beverage, MEDICAL, Chemical |
| Driven Type: | Pneumatic | Packaging Type: | Cartons, CANS, Bottles, Stand-up Pouch, Bags, Pouch |
| Warranty: | 1 Year | Core Components: | PLC, Engine, Motor |
| Voltage: | 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
| Highlight: | 50Hz Screw Powder Filling Machine,10BPM Screw Powder Filling Machine,380VAC Coffee Powder Filling Machine |
||

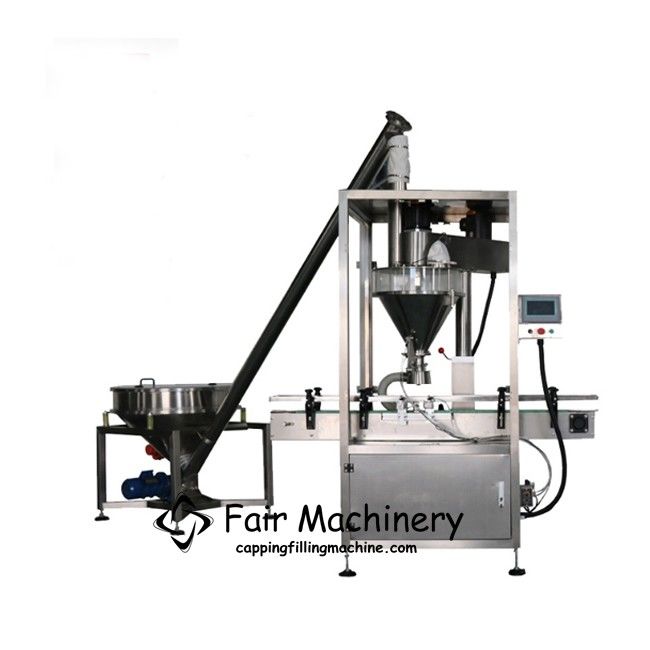

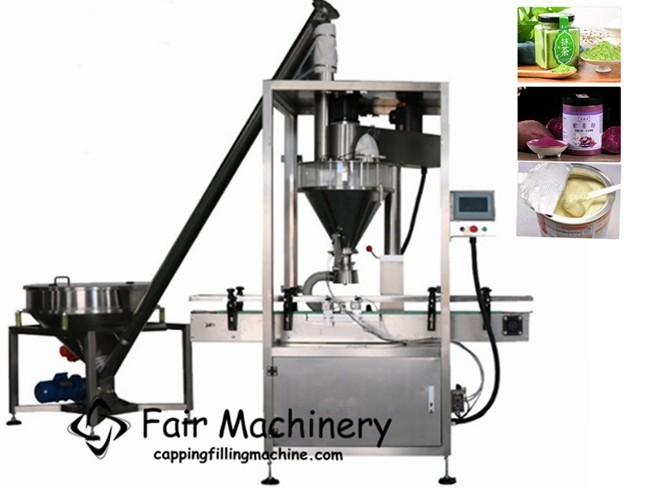

Screw powder filling machine Canned milk powder Seasoning powder filling machine
This machine is an automatic powder and small particle filling machine, which can complete automatic bottle positioning, filling and metering. It consists of a filling head, a chain conveyor belt and a positioning device. It adopts a servo motor, PLC and Touch screen control, easy operation and high stability. It can be combined with bottle unscrambler, capping machine, labeling machine, etc. to form a complete filling line. It is suitable for packaging powder and small granular materials, such as powders, small granular medicines, veterinary drugs, glucose, condiments, solid beverages, carbon powder, talcum powder, pesticides, etc.
Main performance and structure:
1. Standard SUS304 stainless steel material, fully meets the requirements of food and medicine;
2. Maintenance-free and noise-free gear reducer motor;
3. Servo motor with high speed and no noise;
4. Synchronous mixing mechanism to avoid material leakage;
5. Transparent silo, the operating status of materials is clear at a glance;
6. Can open the silo;
7. It can be cleaned at any time and at will without dead ends. Complete within two minutes;
8. The position of the agitator can be adjusted conveniently to achieve better packing accuracy;
9. It is convenient to maintain and repair the agitator, metering screw, long shaft and other components;
10. High-precision processing methods make the matching height of the motor, long shaft, bin, metering screw, and material cup concentric.
Features:
1. Improve operation efficiency;
2. Reduce the wear of the metering screw;
3. Greatly reduce the failure of the metering screw due to mixing and running after the machine is moving, cleaning, and running for a long time;
4. The metering cup and the silo are connected by quick-fitting clamps, making it easier to use
Technical parameters:
| Model | FP-150C |
| Filling capacity (Gram) | 50-500 G (Can be customized according to customer requirements) |
| Filling speed (BPM) | 10-30 B／Min |
| Power supply (VAC) | 220/380V 50/60HZ |
| Power (KW) | 2.8 |
| Dimensions (MM) | 1800x980x1800 |
| Net weight (KG) | 460 |
