| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE |
| Model Number: | FCG-4-1 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 10 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Control Box: | Explosion-proof Electric Control Box |
|---|---|---|---|
| Capping Way: | Pneumatic Lower Lid System | Core Components: | PLC, Touching Screen, Frequency Converter |
| Automatic Grade: | Automatic | Key Selling Points: | Automatic |
| Equipped With Gas Source: | 0.4-0.6mpa Clean And Stable Gas Source | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
| High Light: | 1L Capping Filling Machine,2.8KW Capping Filling Machine,50B/Min automatic bottle filling and capping machine |
||

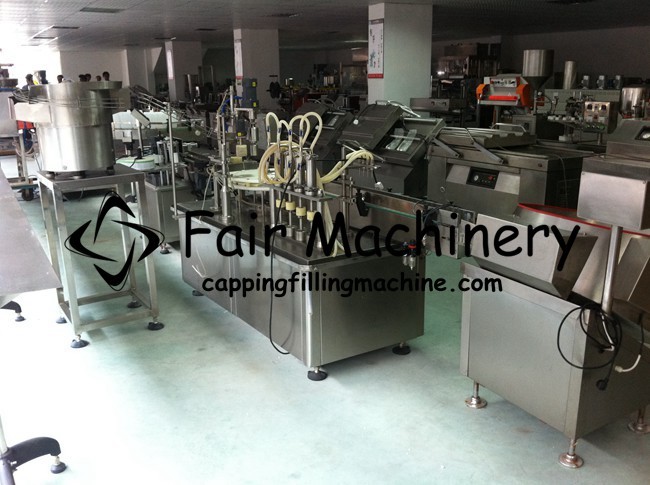

304 Stainless steel Explosion-proof filling capping machine
This machine is a high-tech filling equipment with programmable microcomputer (PLC), photoelectric sensing and pneumatic execution. It is is designed to be electrically separated by independent explosion-proof control box, which can realize explosion-proof function during filling procedure, so it can be used for volatility and explosive agricultural chemicals or chemistry reagent liquid.
The filling metering is accurate, no bubbles, no dripping(Filling nozzle with anti-drip device). It can be applied to fill into many kinds of various bottle types, volume is about 50ml to 1000ml.
Technical parameters:
| Model | FCG-4-1 |
| Filling capacity | 50-1000ml |
| Filling speed | 30-50B/Min (6-heads is in the range of 50-500ml) |
| Filling accuracy | ＜±1% |
| power supply | customized |
| Air pressure | 0.4-0.6MPa |
| power | 2.8KW |
| Net weight | 600KG |
