| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE |
| Model Number: | FSFC-881A |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 10 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Packing Type: | CANS, Bottles, Stand-up Pouch, Bags |
|---|---|---|---|
| Packaging Material: | Plastic, Glass | Capping Way: | Pneumatic Lower Lid System |
| Core Components: | PLC, Touching Screen, Frequency Converter | Key Selling Points: | Fully Automatic, High Accuracy, Easy To Operate, Low Cost |
| After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support | Application: | Beverage, Chemical, Commodity, Food |
| Function: | Rinsing, Filling, Sealing, Capping | Special Function: | Special Explosion-proof |
| High Light: | 2kw Glass Bottle Filling And Capping Machine,50ml Rinsing Filling Capping Machine,SS316 Rinsing Filling Capping Machine |
||

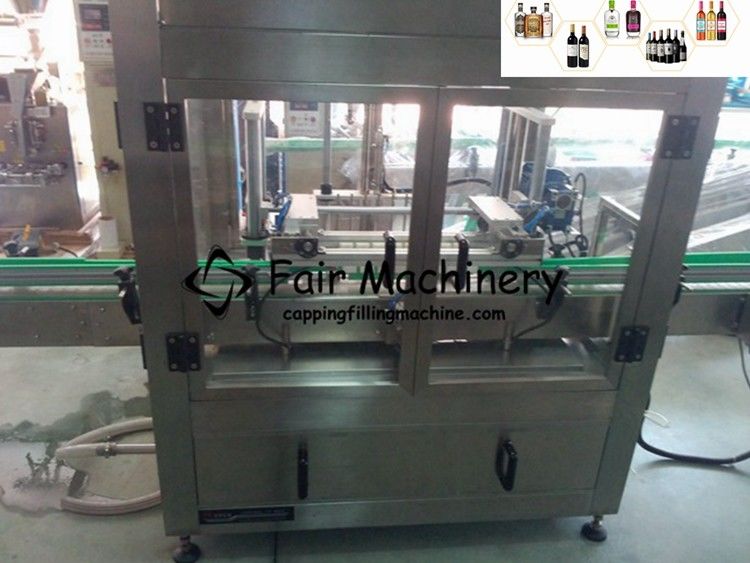

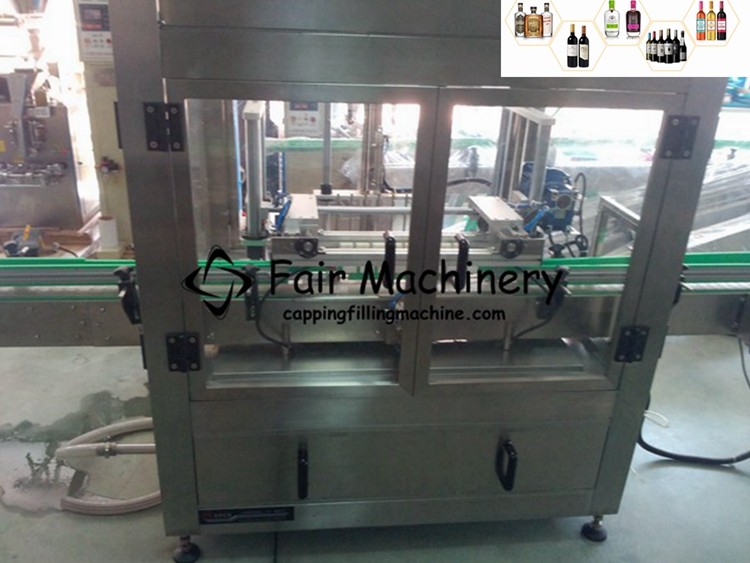

Glass Bottle with aluminum cap spirits liquor Wine Rinsing bottle Filling And Capping Machine
This machine can Wash bottle-filling-capping : Machinery is used to produce small wine /wine can also polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency. wash, fill and seal are composed in one body of the machine. The whole process is automatic.
| Model | FSFC-881A |
| Filling capacity (ML) | 50-1000ml |
| Filling speed (BPM) | 30-35 B／Min |
| Power supply (VAC) | 220V |
| Power (KW) | 2.0 |
| Air consumption (MIN) | 4KGS×30LITER |
| Dimensions (MM) | 6000x900x2200 |
| Net weight (KG) | 500 |
Rinsing structure:
Filling structure:

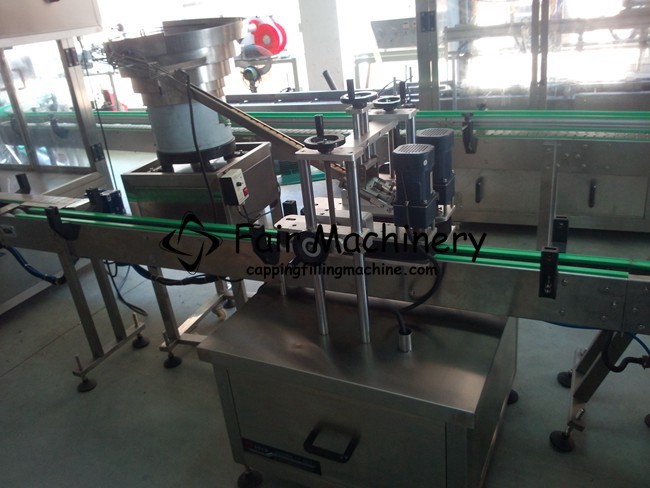

Capping structure:
