Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Semi Automatic |
---|---|---|---|
Key Selling Points: | High-accuracy, Easy To Operate, Low Cost | Packaging Type: | Plastic Bottles |
Packaging Material: | Metal, Glass | Function: | Auto Feeding Screwing Pressing Caps |
Capping Type: | Screw Capping Locking | Capping Speed: | 30-60 Bottles/Min |
Core Components: | PLC, Engine, Motor | Control: | PLC+ Touch Screen |
Voltage: | 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
High Light: | 6KG/M3 Screw Capping Machine,120W Screw Capping Machine,30BPM automatic bottle capper machine |
Technical parameters:
Model | FAS-60 |
Bottle height | 50-300 MM |
Cap diameter | 10-50 MM |
Capping speed (BPM) | 20-30 B/Min |
Air source pressure | 4-6KG/M³ |
Power supply (VAC) | 220V 50/60HZ |
Power (W) | 120 |
Dimensions (MM) | 620x550x800 |
Net weight (KG) | 32 |

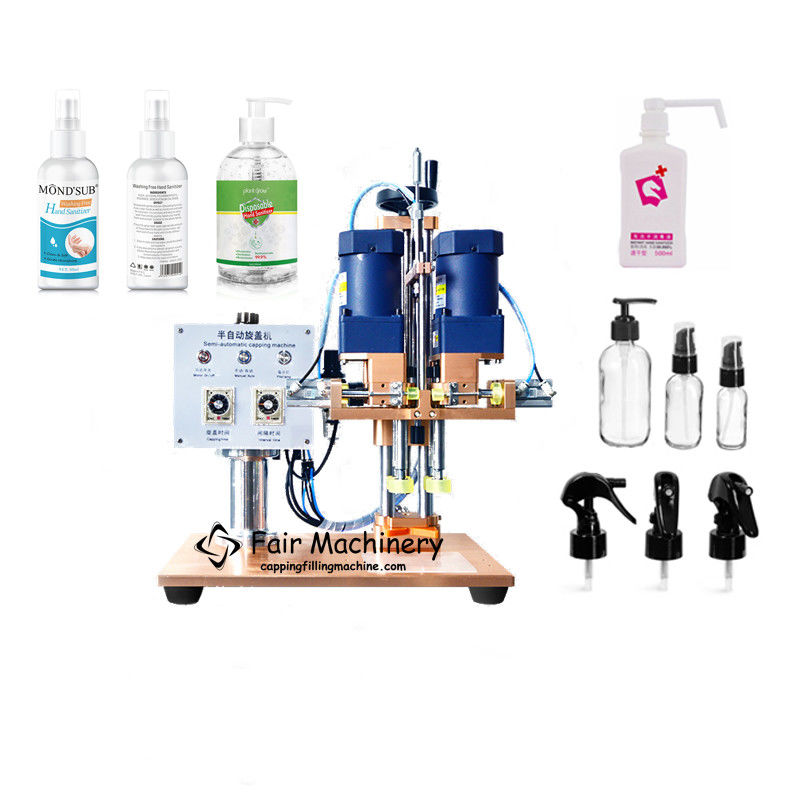

Front view:
Sample style:
