| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE |
| Model Number: | FP-400A |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 10 pcs per month |
| Packaging Material: | Plastic, Glass | Capping Way: | Pneumatic Lower Lid System |
|---|---|---|---|
| Core Components: | PLC, Touching Screen, Frequency Converter | Automatic Grade: | Fully Automatic |
| Key Selling Points: | Fully Automatic, High Accuracy, Easy To Operate, Low Cost | Equipped With Gas Source: | 0.4-0.6mpa Clean And Stable Gas Source |
| After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support | Application: | Beverage, Chemical, Commodity, Food |
| Function: | Filling, Weighing, Sealing | Special Function: | Special Explosion-proof |
| High Light: | 220V Capping Filling Machine,7kw Capping Filling Machine,100ml jam jar filling machine |
||

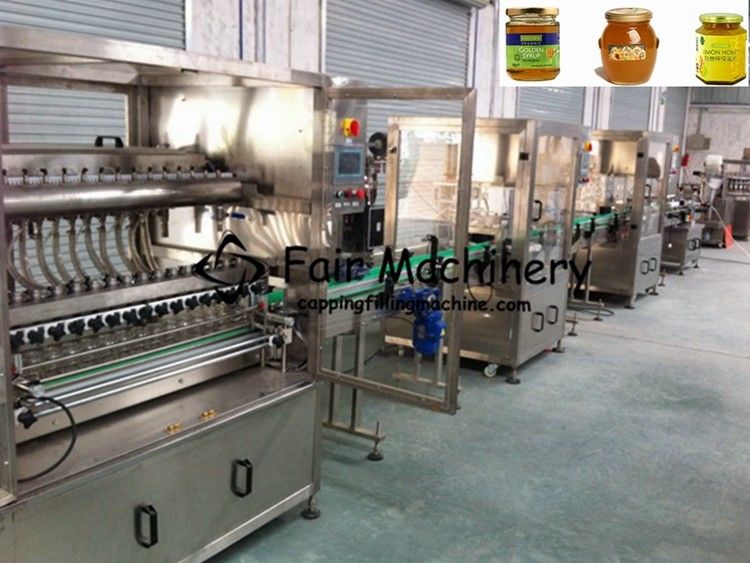

glass jar vacuum filling capping machine production line
This production line is a new generation of automatic filling vacuum capping production line developed by our company with many years of production experience and absorbed the world's advanced technology. It adopts servo piston metering method, the piston is driven by a servo motor to reciprocate, which can realize variable-speed (settable) filling, high filling quantitative accuracy, linear positioning of the bottle, strong compatibility, convenient adjustment, electrical and pneumatic components are selected from the world Well-known brand, controlled by PLC with man-machine interface (touch screen), reasonable design, compact structure and beautiful appearance. It has the characteristics of accurate measurement, strong compatibility, stable and reliable performance, high degree of automation, simple operation and convenient maintenance. It is widely used for filling and capping of various pastes and sauces (vacuum capping method and ordinary capping can be selected for capping), such as edible oil, honey, syrup, jam, peanut butter, sesame paste, tomato sauce, etc.
The main performance characteristics of the equipment and the use of materials:
1. The frame of the whole machine is made of SUS304 stainless steel, and all the material parts of the equipment are made of SUS304 high-quality stainless steel and food-grade plastic, which is clean and hygienic, and meets the requirements of food hygiene and safety;
2. The whole machine is controlled by the integration of machine, electricity, and gas, with automatic bottle feeding and positioning functions, simple operation and convenient maintenance; the machine is equipped with a lack of bottle no filling, automatic liquid level control and feeding function;
3. The filling head is equipped with an anti-drip device, and the filling does not drip;
4. The filling and dosing mechanism is fast and flexible, and the disassembly and washing are simple and quick;
5. Accurate measurement: Servo motor drives the piston to move back and forth, and the positioning of the piston movement is accurate, thus ensuring high filling accuracy;
6. Convenient adjustment: To adjust the filling volume, you only need to change the parameters on the touch screen, which is easy to operate.
| Model | FFC-12A-1 |
| Filling capacity (ML) | 100-1000ml |
| Filling speed (BPM) | 20-50B／Min |
| Power supply (VAC) | 220V 380V 50-60Hz |
| Power (KW) | 7.0 |
| Air consumption (MIN) | 4KGS×30LITER |
| Dimensions (MM) | 5000x900x2200 |
| Net weight (KG) | 1500 |
