| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE, ISO, SGS |
| Model Number: | FCS-3A |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Application: | Food, Beverage, MEDICAL, Chemical | Driven Type: | Pneumatic |
|---|---|---|---|
| Packaging Type: | Cartons, CANS, Bottles, Stand-up Pouch, Bags, Pouch | Packaging Material: | Plastic, Paper |
| Function: | Sealing, Corner Trimming | Accuracy: | ±1% |
| Warranty: | 1 Year | Core Components: | PLC, Engine, Motor |
| Voltage: | 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
| Highlight: | 110VAC Pallet Packing Machine,50HZ Pallet Packing Machine,1.5KW Pallet Stretch Wrapping Machine |
||

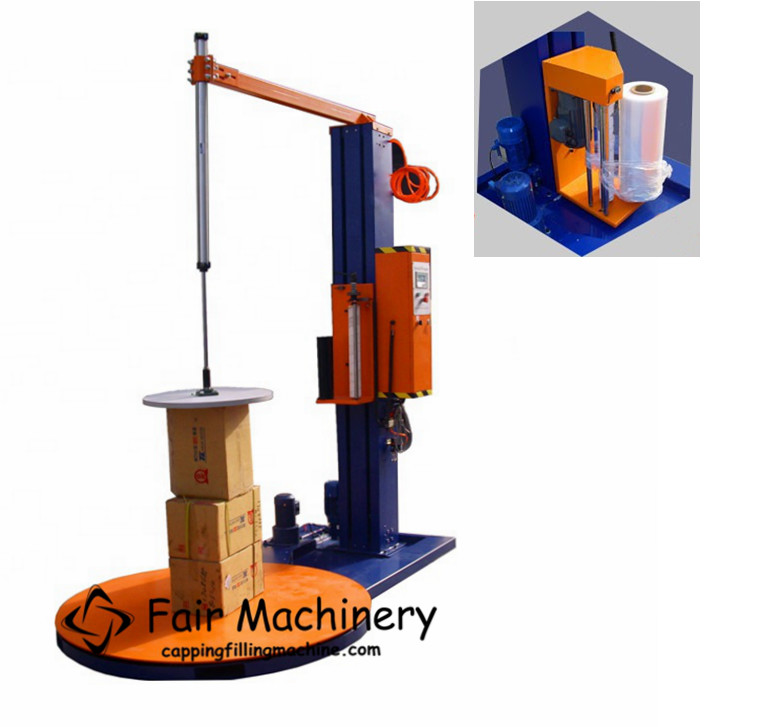

Automatic pallet packing machine and stretch wrapping machine with film sealer Wooden box pallet winding packaging mach
Working principle
The working principle of the winding machine is to place the wound object on the turntable, start the rotation of the turntable motor, and naturally drive the turntable to rotate, so that the object realizes the peripheral winding film machine. At the same time, the elevator motor is also started, and the winding machine drives the entire winding strapping machine. The combined body moves up and down to reach the winding in the height direction of the object, which realizes the winding and packaging of the entire appearance of the object. This is not only conducive to the storage, transportation, and packaging requirements of mechanized loading and unloading operations, but also prevents the goods from being damaged during the handling process. Damage, play the role of dustproof, moisture-proof and cleaning, also reduce production costs, improve production efficiency. In the winding process, the main thing is to adjust the film tension and film penetration. Generally by adjusting the rotating speed of the turntable and adjusting the motor The rotation speed can reach the degree of film tension.
| Model | FMD-6040 |
| Power (KW) | 1.5 |
| Power supply (VAC) | 110V 220V 50/60HZ |
| Maximum package size | 1100×1100×2000mm |
| Film stretch rate | 250% |
| Turntable load-bearing | 2000 Kg |
| Turntable diameter |
1500 MM Alternative(1650/1800/2000)MM |
| Dimensions (MM) | 2600x1500x2400 |
| Net weight (KG) | 750 |
