| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE, ISO, SGS |
| Model Number: | FZB-250A |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Automatic |
|---|---|---|---|
| Key Selling Points: | Fully Automatic, Easy To Operate | Application: | Food, Commodity, Machinery & Hardware |
| Packaging Material: | Plastic, Paper, Plastic, Foil, Film | Warranty: | 1 Year |
| Function: | Wrapping, Cutting,Sealing, Wrapping, Printing | Core Components: | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox, Other |
| Voltage: | 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
| Highlight: | 3PH Instant Noodle Packing Machine,60HZ Energy Bar Extruder,PLC Energy Bar Extruder |
||

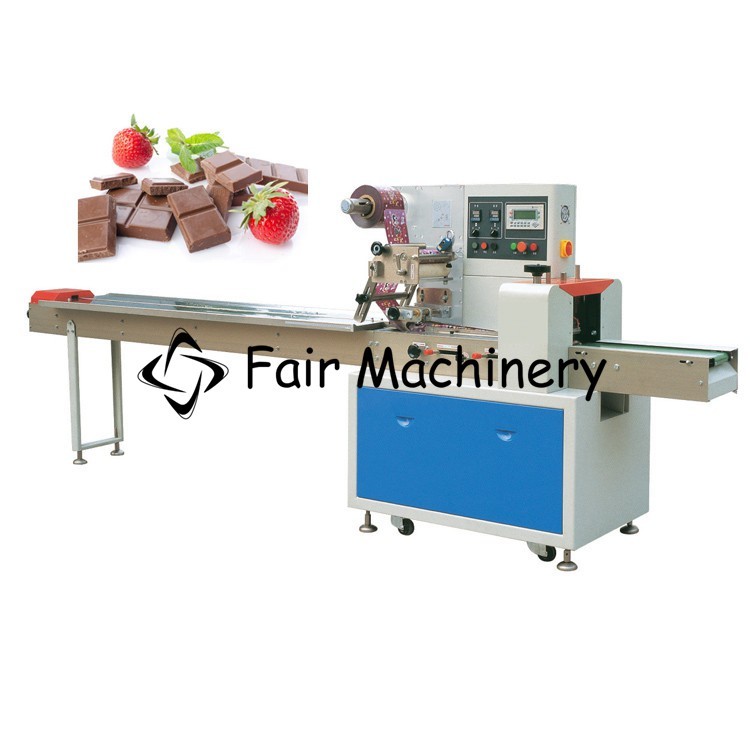

Instant Noodles Industrial Parts Nut bar extruder pack,Energy bar auto extruding packaging machine
Multiple automatic alarm protection functions to minimize damage
Diversified bag shape, can provide customers with pillow bag, pocket, hole bag, joint and so on

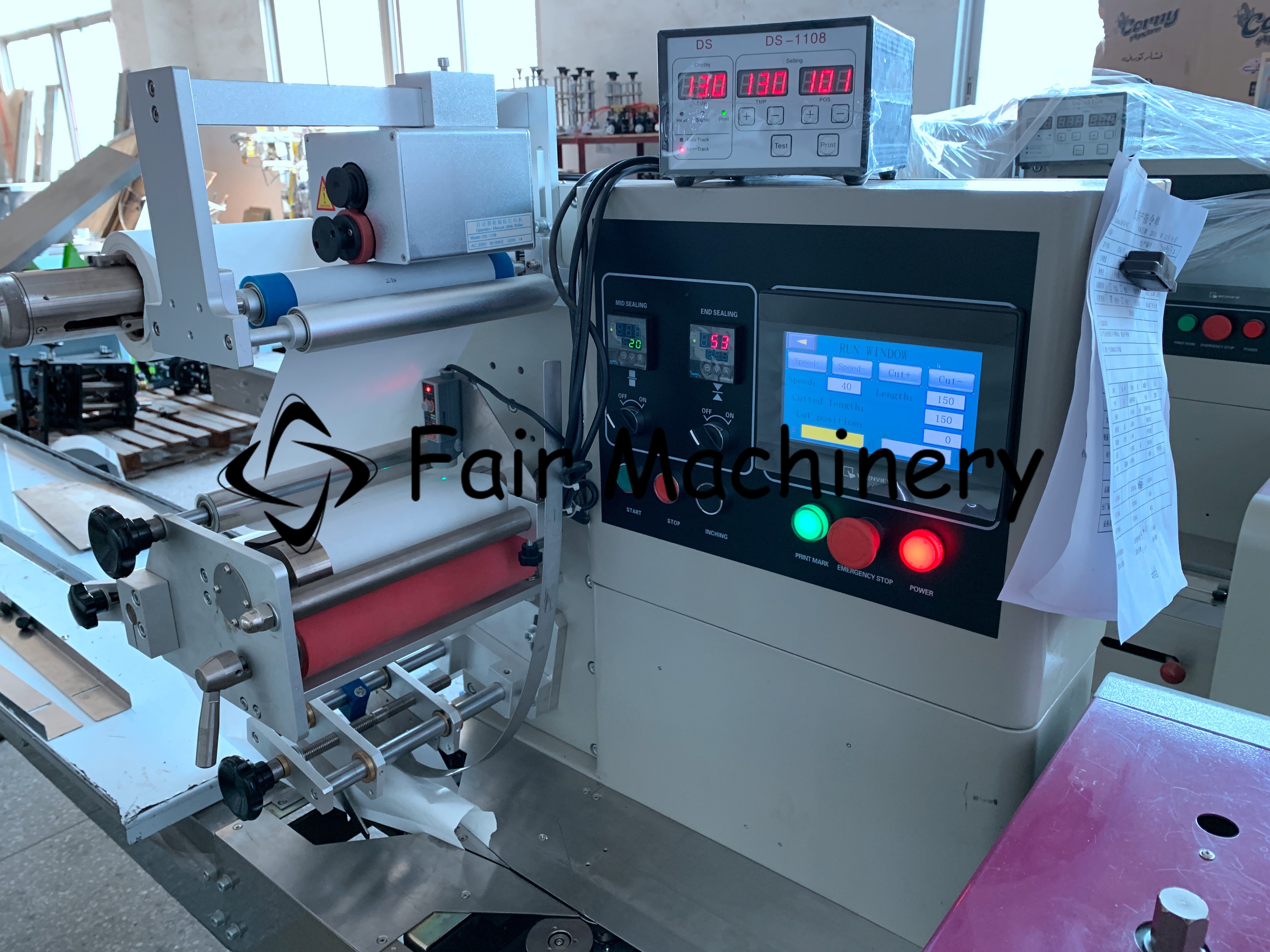

Touch screen and stable and reliable PLC control, bag-making, metering, sealing, coding, bag-cutting one-time completion
1. High-sensitivity photoelectric eye color mark tracking, digital input of the sealing and cutting position, so that the sealing and cutting position is more accurate.
2. Independent PID control of temperature, better suitable for various packaging materials.
3. Reciprocating end-sealing mechanism, the sealing is firmer, and the die-sealing cutter has no loss.
| Model | FZB-250A |
| Bag length | 50-250mm |
| Bag width | 30-100 mm |
| Power supply (VAC) | 380 or 220V 50/60Hz |
| Power (KW) | 3.2Kw |
| Max width of roll film | 240 |
| Packing speed | 30-150 Bag/min |
| Film width | 90-350 |
| Dimensions (MM) | 3200x750x1350 |
| Net weight (KG) | 230 |
