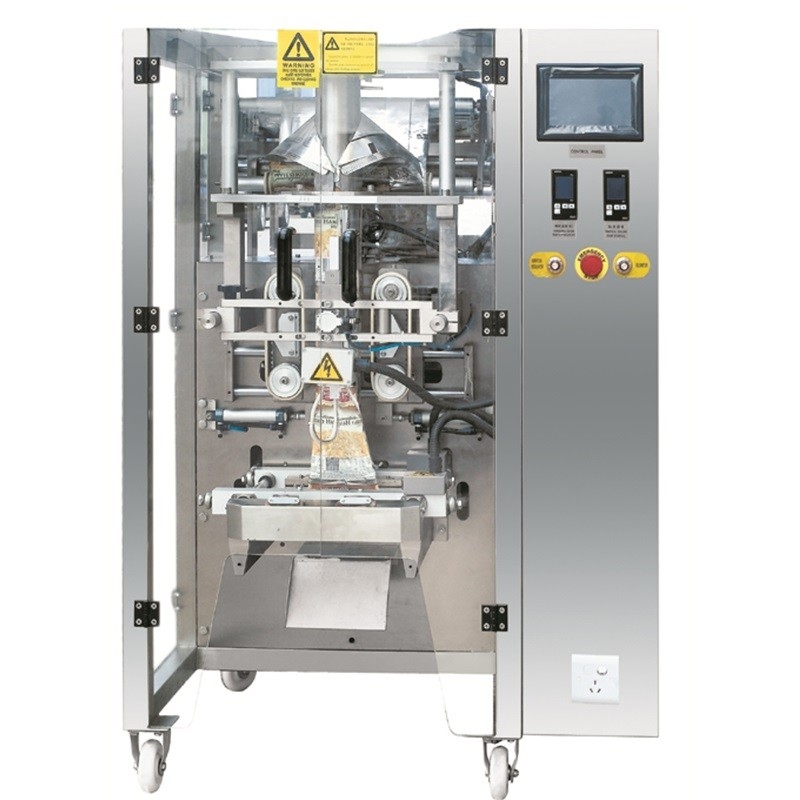

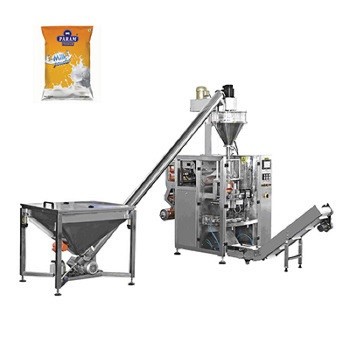

50hz 5BPM Powder Pouch Packing Machine For Protein Powder 2.5Kw

Basic Information
Place of Origin: China
Brand Name: Fair Machinery
Certification: CE, ISO, SGS
Model Number: FPP-2A
Minimum Order Quantity: 1
Packaging Details: wooden packaged
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union. L/C
Supply Ability: 100 pcs per month
Detail Information
Material: 304 Or 316 Stainless Steel Automatic Grade: Automatic
Application: Food, Machinery & Hardware Packaging Type: Stand-up Pouch, Bags, Pouch
Packaging Material: Plastic Warranty: 1 Year
Function: Filling, Sealing Core Components: Motor, Pressure Vessel, PLC, Gear, Bearing, Engine, Gearbox, Other
Voltage: 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ After-sales Service: Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support
Highlight:

50hz Powder Pouch Packing Machine

,

5BPM Powder Pouch Packing Machine

,

2.5Kw protein powder packing machine


Product Description

Automatic Rice flour Curry powder flour Protein powder filling packaging machine

The screw metering method is used for bag packaging of powder materials and powder materials with a particle size larger than 200 mesh. All materials in contact with the material are made of stainless steel and non-toxic, wear-resistant plastics that meet the requirements of food and pharmaceutical packaging.
It is suitable for packaging powdery materials with low flow or poor fluidity, such as milk powder, glucose, coffee, feed, pesticides, chemical products, etc.
The temperature control system adopts a digital automatic constant temperature system, which is matched with the heat detector line, and the finished product is beautiful and has good sealing performance.

The film feeding system adopts a stepping motor to pull the film, and the contact switch senses to reduce the error of film feeding.

Technical parameters:
Model FSJ-420A
Bag length 50-300 mm
Bag width 40-200 mm
Power supply (VAC) 380/220V 50/60Hz
Power (KW) 2.5Kw
Max width of roll film 420
Packing speed 5-40 Bag/min
Measuring range 10-100,50-500g
Can be customized according to customer requirements
Air consumption 0.65mpa
Dimensions (MM) 950x850x1600
Net weight (KG) 430









50hz 5BPM Powder Pouch Packing Machine For Protein Powder 2.5Kw 0

50hz 5BPM Powder Pouch Packing Machine For Protein Powder 2.5Kw 1

50hz 5BPM Powder Pouch Packing Machine For Protein Powder 2.5Kw 2



50hz 5BPM Powder Pouch Packing Machine For Protein Powder 2.5Kw 3



50hz 5BPM Powder Pouch Packing Machine For Protein Powder 2.5Kw 4
