| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE, ISO, SGS |
| Model Number: | FSJ-380A |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Equipped With Gas Source: | 0.4-0.6mpa Clean And Stable Gas Source | Application: | Food, Beverage, Commodity, MEDICAL, Chemical, Machinery, & Hardware, APPAREL, Textiles, Cigarettes, Tobacco |
|---|---|---|---|
| Packaging Type: | Stand-up Pouch, Bags, Pouch | Packaging Material: | Plastic |
| Warranty: | 1 Year | Function: | Filling, Sealing, Slitting, Give Pouch |
| Core Components: | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox, Other | Voltage: | 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ |
| Pouch Pattern: | Flat, Stand-up Pouch | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
| Highlight: | 2.5Kw Liquid Pouch Packing Machine,40Bag/Min Liquid Pouch Packing Machine,0.65mpa milk pouch packing machine |
||

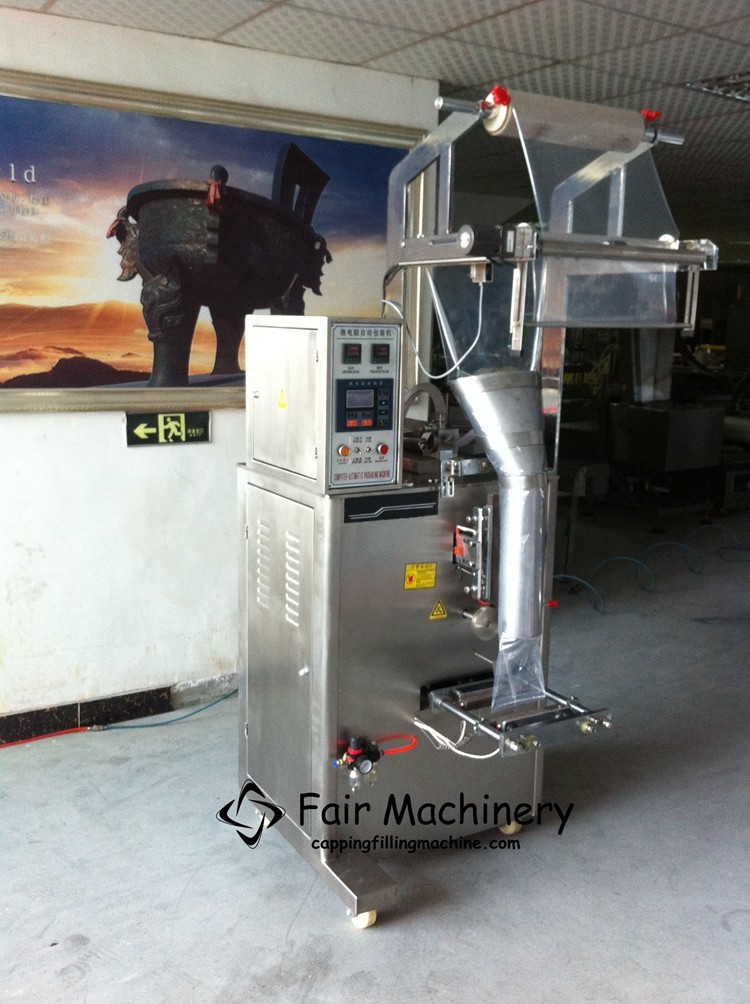

Stable performance and big volume automatic milk liquid pouch packing machine
Product description:
Technical parameters:
| Model | FSJ-380A |
| Bag length | 50-280 mm |
| Bag width | 50-180 mm |
| Power supply (VAC) | 380/220V 50/60Hz |
| Power (KW) | 2.5Kw |
| Max width of roll film | 400 |
| Packing speed | 5-40 Bag/min |
| Measuring range | 10-100,50-500,100-1000 ml |
| Air consumption | 0.65mpa |
| Dimensions (MM) | 1450x1300x1800 |
| Net weight (KG) | 530 |
