| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE, ISO, SGS |
| Model Number: | FSJ-240A |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Semi Automatic |
|---|---|---|---|
| Driven Type: | Pneumatic | Application: | Food, Beverage, Commodity, MEDICAL, Chemical, Machinery, & Hardware, APPAREL, Textiles, Cigarettes, Tobacco |
| Packaging Type: | Stand-up Pouch, Bags, Pouch | Packaging Material: | Plastic |
| Warranty: | 1 Year | Function: | Filling, Sealing, Slitting, Give Pouch |
| Core Components: | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox, Other | Voltage: | 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ |
| Pouch Pattern: | Flat, Stand-up Pouch | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
| Highlight: | 220VAC Ice Bag Packing Machine,5Bag/Min Ice Bag Packing Machine,500ml Pneumatic Piston Filling Machine |
||

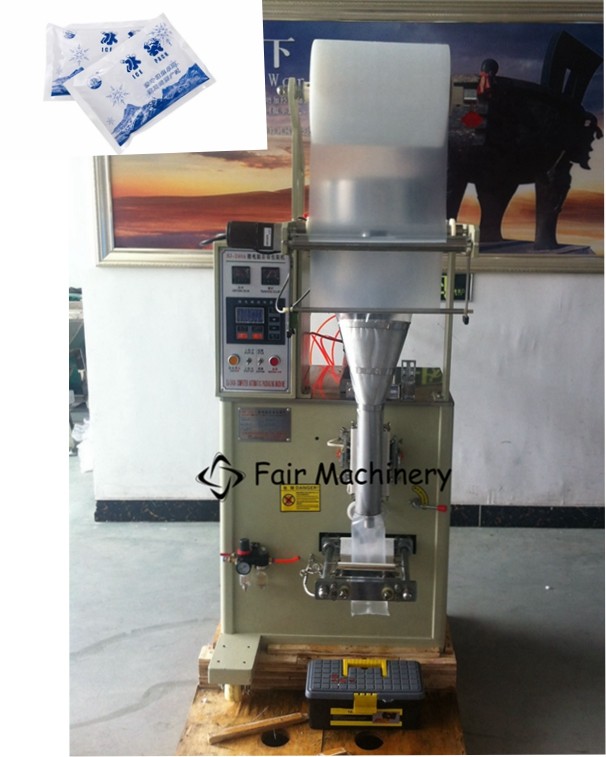

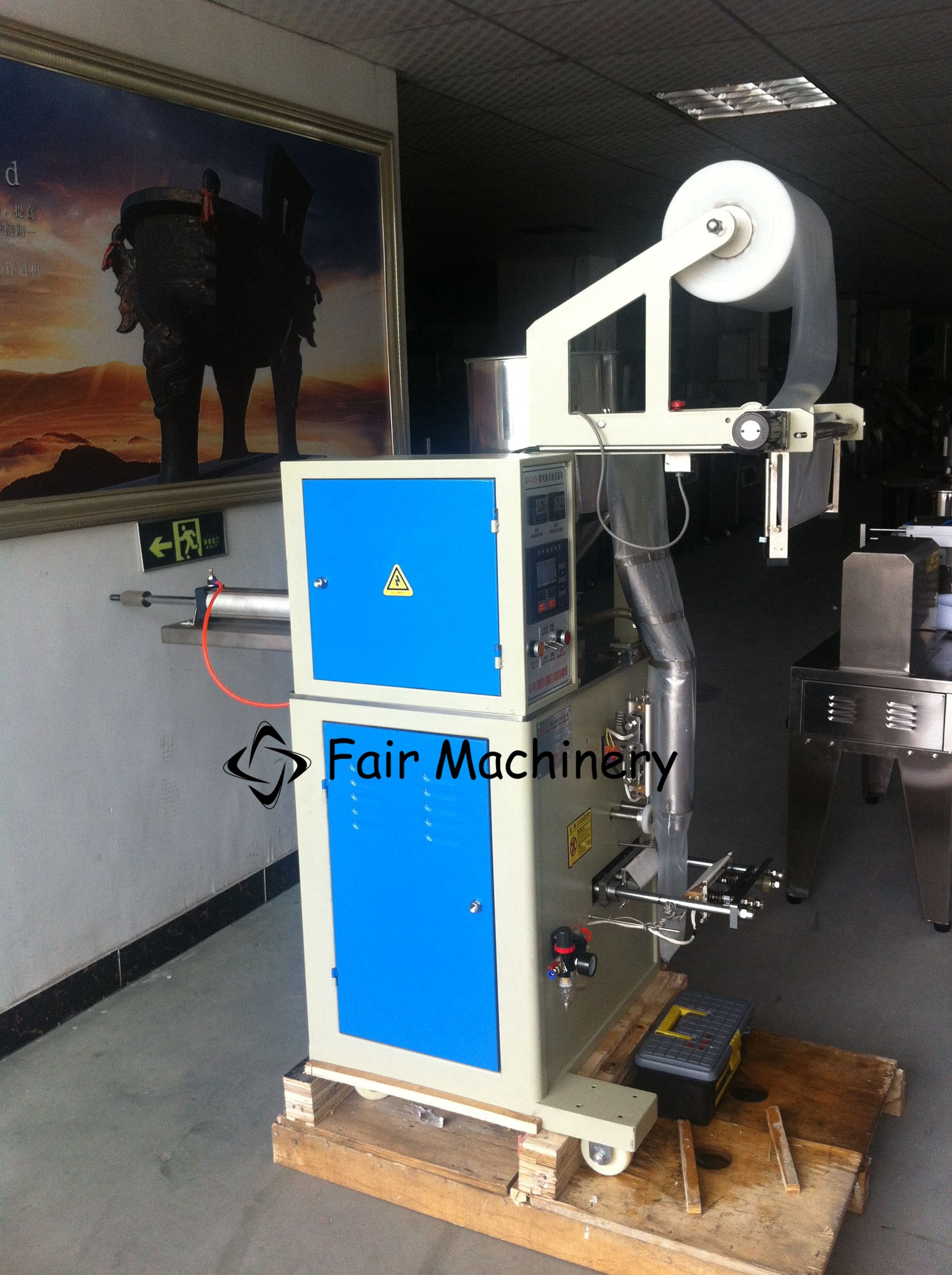

Monolayers film PE film Tomato sauce honey ice bag packing machine
This machine is suitable for packaging, shampoo, milk, soy sauce, chili sauce, yogurt, peanut oil, ketchup, jam, liquid or sauce. It is suitable for food, pharmaceutical, chemical, cosmetics, daily necessities, etc. Industry packaging requirements.
Bag length microcomputer adjustment: The bag length is set by the microcomputer, which has the characteristics of accurate bag length, convenient adjustment, simple maintenance and reliable work.
Heat sealing double-channel temperature control: The temperature can be preset by the intelligent temperature controller, the temperature control is accurate, and the good heat balance ensures the sealing quality.
The filling method adopts a piston metering pump, and the barrel can be equipped with mixing blades. The weight adjustment is convenient and simple, and the measurement is accurate. Various shapes and seals can be customized according to customer needs.
| Model | FSJ-240A |
| Bag length | 50-200 mm |
| Bag width | 30-100 mm |
| Power supply (VAC) | 380/220V 50/60Hz |
| Power (KW) | 2.5Kw |
| Max width of roll film | 400 |
| Packing speed | 5-40 Bag/min |
| Measuring range | 10-100,50-500,100-1000 ml |
| Air consumption | 0.65mpa |
| Dimensions (MM) | 1200x900x1600 |
| Net weight (KG) | 200 |
