| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE |
| Model Number: | FFC-6B |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Automatic |
|---|---|---|---|
| Nozzles: | 6 | Driven Type: | Pneumatic |
| Application: | Food, Beverage, MEDICAL, Chemical | Filling Material: | Peanut Oil , Shampoo, Honey, Toothpaste, Beer, OTHER, Milk, Water, Oil, Juice |
| Packaging Type: | CANS, Bottles, Stand-up Pouch | Packaging Material: | Plastic, Metal, Glass, OTHER |
| Warranty: | 1 Year | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
| Highlight: | 500ml Ketchup Filling Machine,380V Ketchup Filling Machine,36B/Min chili sauce filling machine |
||

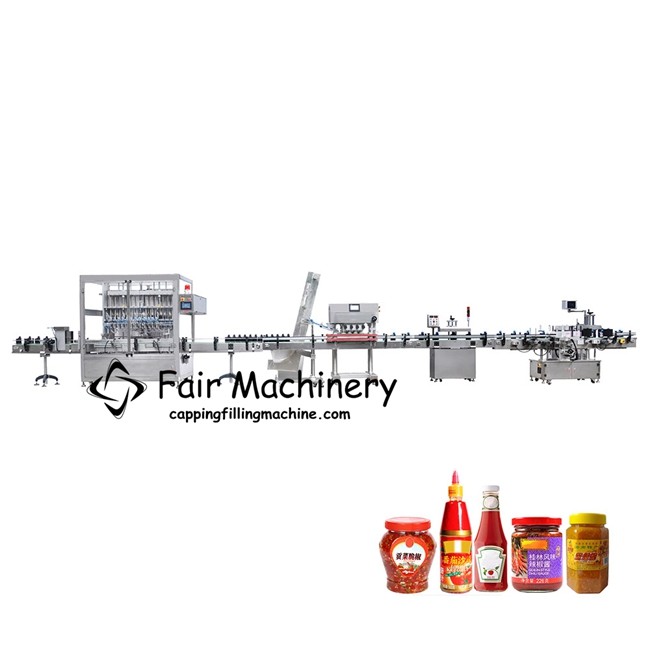

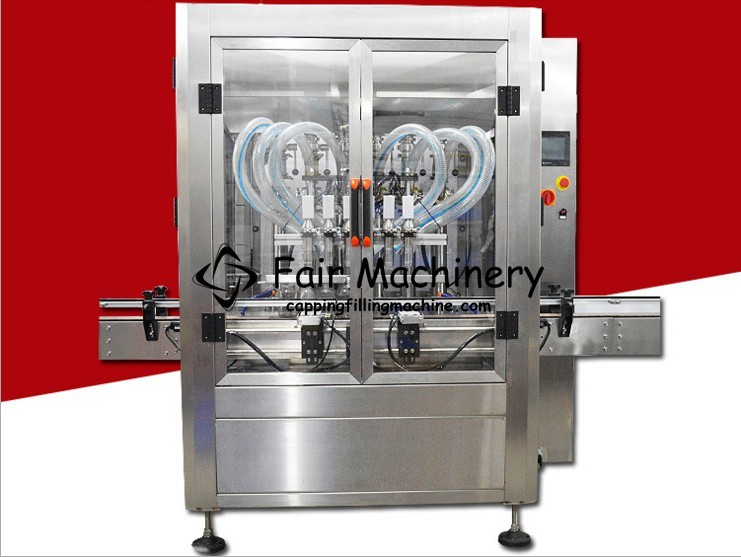

Automatic Chili Sauce/Tomato paste Filling Machine production line 6 nozzles
This series of filling machines have the advantages of reasonable structure, compact model, reliable performance, accurate quantification and convenient operation. For chopped chili, red bean curd, dried shredded pork, spicy sauce, oily chili, oily chili, large grain beef sauce, mushroom sauce, etc., there is no need to separate and fill the oil sauce to ensure uniformity accuracy. It is a widely used filling equipment for granular sauce.
The automatic chili sauce filling machine is mainly used for the filling of granular fluid, semi-fluid, paste and sauce-like materials, such as chili sauce, beef sauce, beef miso, yellow lantern sauce, and bean paste. , Sesame paste, jam, hot pot bottom material and other materials filling.
| Model | FFC-6B |
| Filling capacity (ML) | 100-500ml |
| Filling speed (BPM) | 18-36 B／Min |
| Power supply (VAC) | 220V 380V 50-60Hz |
| Power (KW) | 4.2 |
| Air consumption (MIN) | 4KGS×30LITER |
| Dimensions (MM) | 2500x900x1850 |
| Net weight (KG) | 580 |
Special 3 connections:
Filling nozzles:
High accuracy Piston Cylinder:
optional mixer hopper:
Sample style:
