| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE |
| Model Number: | FF-2A |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Automatic |
|---|---|---|---|
| Key Selling Points: | Easy Operation, Automatic | Nozzles: | 1 |
| Equipped With Gas Source: | 0.4-0.6mpa Clean And Stable Gas Source | Driven Type: | Pneumatic |
| Application: | Food, Beverage, MEDICAL, Chemical | Filling Material: | Peanut Oil , Shampoo, Honey, Toothpaste, Beer, OTHER, Milk, Water, Oil, Juice |
| Packaging Type: | CANS, Bottles, Stand-up Pouch | Packaging Material: | Plastic, Metal, Glass, OTHER |
| Warranty: | 1 Year | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
| Highlight: | 2KW Mineral Water Bottle Filling Machine,SS304 Mineral Water Bottle Filling Machine,16BPM Beer Can Filling Machine |
||

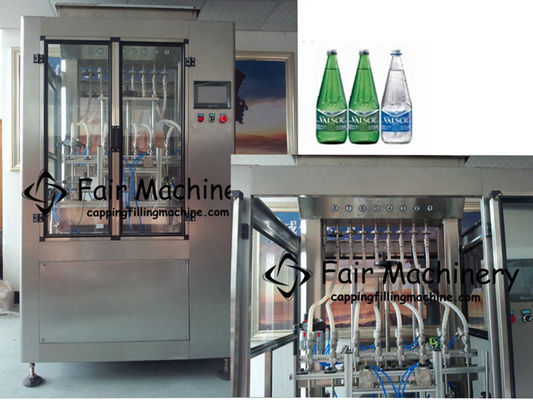

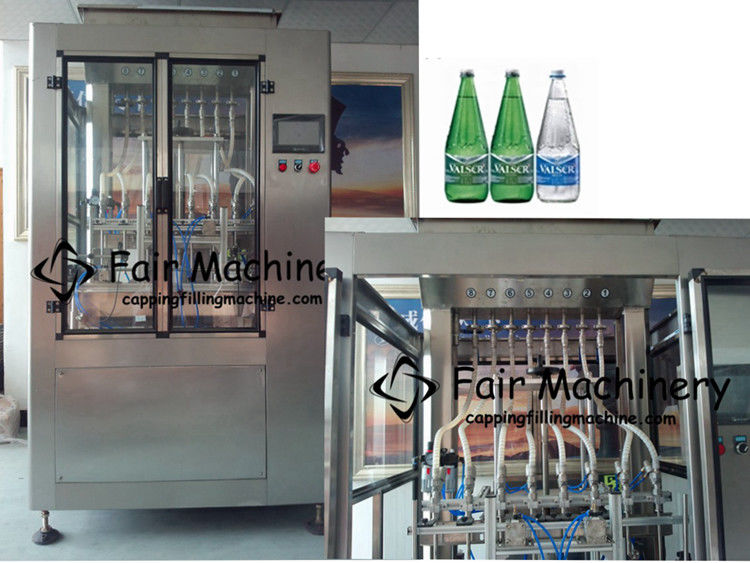

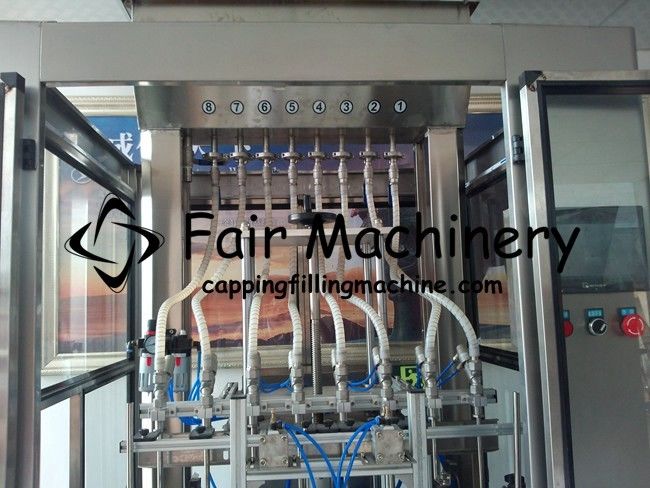

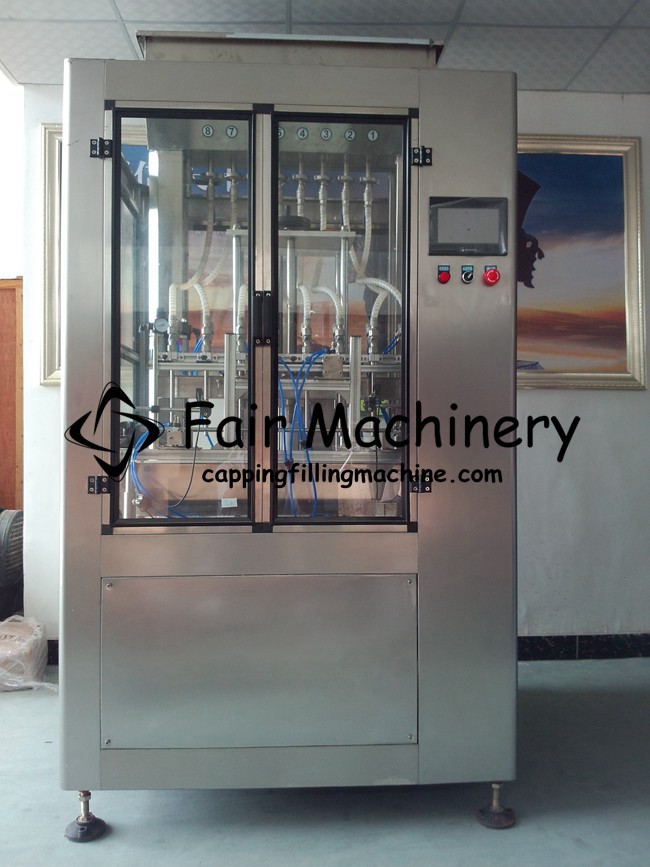

liquid filling machine with 8 heads self-flowing filling machine
The machine is a high-tech filling equipment that is programmable by microcomputer (PLC), photoelectric sensing and pneumatic execution. This model is designed for food, such as: white wine, soy sauce, vinegar, seasonings, vegetable oil, syrup, mineral water and other edible liquids and pesticide chemical liquid filling. The filling metering is accurate, no bubbles, no dripping. Suitable for filling various bottle types of 50-1000ml
The filling uses fixed flow path parameters to control the filling time to achieve different metering filling. The precise time of pneumatic valve filling can be set to 0.01 seconds, which can control the measurement accuracy within ±1% error range, reduce unnecessary material loss and improve user economic benefits. The metering of each filling head can be individually adjusted to achieve consistent filling metering. This machine sets the bottle feeding technical program, no bottle, the counting is not in place, and the filling is started only when the number of bottles recorded by the counter matches the set number of filled bottles. The amount of filling can be adjusted to the required filling volume, and then fine-tuned to obtain the ideal filling measurement accuracy.
| Model | FFC-8A |
| Filling capacity (ML) | 50-1000ml |
| Filling speed (BPM) | 16-48 B／Min |
| Power supply (VAC) | 220V |
| Power (KW) | 2.0 |
| Air consumption (MIN) | 4KGS×30LITER |
| Dimensions (MM) | 3000x900x1800 |
| Net weight (KG) | 500 |
Sample style:
