| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE |
| Model Number: | FC-5A |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 10 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Packing Type: | CANS, Bottles, Stand-up Pouch, Bags |
|---|---|---|---|
| Packaging Material: | Plastic, Glass | Capping Way: | Pneumatic Lower Lid System |
| Core Components: | PLC, Touching Screen, Frequency Converter | Automatic Grade: | Fully Automatic |
| Key Selling Points: | Fully Automatic, High Accuracy, Easy To Operate, Low Cost | Equipped With Gas Source: | 0.4-0.6mpa Clean And Stable Gas Source |
| Function: | Filling, Sealing, Capping | Special Function: | With Hand Feeding Cap |
| Highlight: | SS304 Capping Filling Machine,2000B/H Capping Filling Machine,0.4mpa perfume capping machine |
||

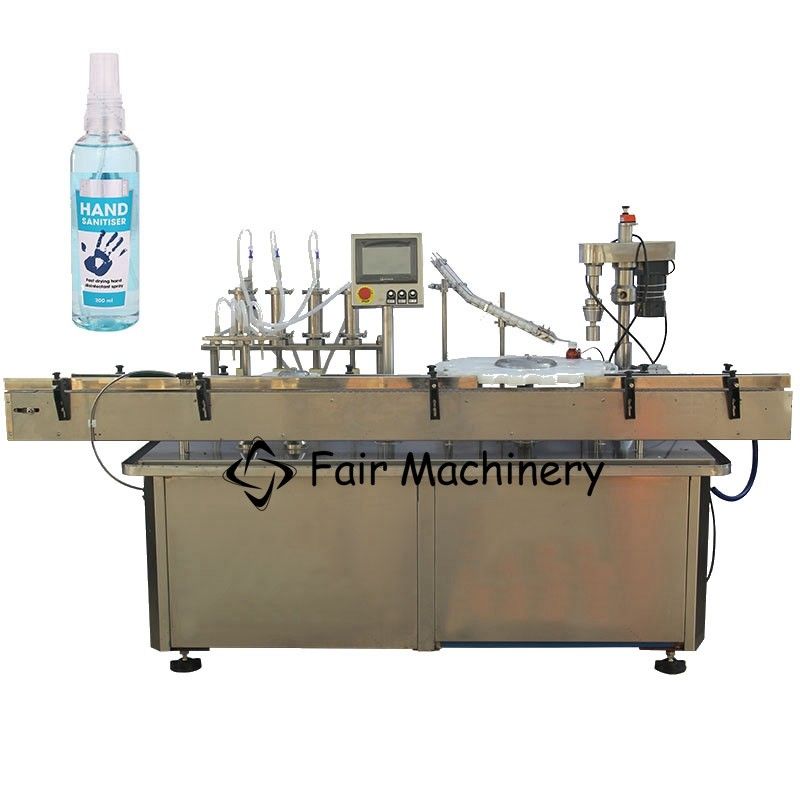

Perfume Spray Nozzle Filling Capping Machine 304 Stainless Steel
The filling and capping machine is a new product
It uses a microcomputer to set the number of steps peristaltic pump to perform metering filling , and is used for the production of a new generation of daily chemical and pharmaceutical pastes. Products required by GMP. It can also be used for small-dose liquid filling and capping production in other industries.
This machine is suitable for automatic filling, capping and capping of round and flat plastic bottles and glass bottles. It has the advantages of accurate positioning, stable transmission, accurate measurement and simplicity. Filling measurement is accurate, no leakage, no bottle no filling; automatic outer cover, no bottle no inner stopper, outer cover; PLC programmable control, touch screen man-machine interface system, simple and convenient operation; inner stopper hopper and outer cover The hopper adopts single-track and double-track feeding, depending on the user's output.
Features:
1. Microcomputer setting, piston pump to
perform filling, material contact parts are all high-quality 304 stainless steel, disinfection-free, corrosion-resistant, and high-temperature resistant.
2. The speed of the main engine can be adjusted by stepless frequency conversion.
3. Automatic quantitative control of production volume.
4. The filling execution and the system have the function of sucking back, and the liquid has no dripping.
5. Automatic display technology function, speed can be adjusted at will.
6. Adopt photoelectric control, no bottle no filling, no capping, no capping. Pouring bottle alarm system
7. Fixed torque screw cap, reliable cap
screwing quality, no looseness.
8. One machine automatically completes filling, plugging, capping and capping, with fast speed and high degree of automation, which greatly saves labor costs.
Technical parameters:
| Model | FC-5A |
| productivity | 1500-2000 B/H |
| Filling capacity | 5-300ml |
| Power supply | 220V 50HZ |
| Power | 2.8 KW |
| Size | 2500×1300×1600 |
| weight | 500KG |
