| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE |
| Model Number: | FFC-5B-5 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 10 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Packing Type: | CANS, Bottles, Stand-up Pouch, Bags |
|---|---|---|---|
| Packaging Material: | Plastic, Glass | Capping Way: | Pneumatic Lower Lid System |
| Core Components: | PLC, Touching Screen, Frequency Converter | Automatic Grade: | Fully Automatic |
| After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support | Application: | Beverage, Chemical, Commodity, Food |
| Function: | Filling, Weighing, Sealing | Special Function: | Special Explosion-proof |

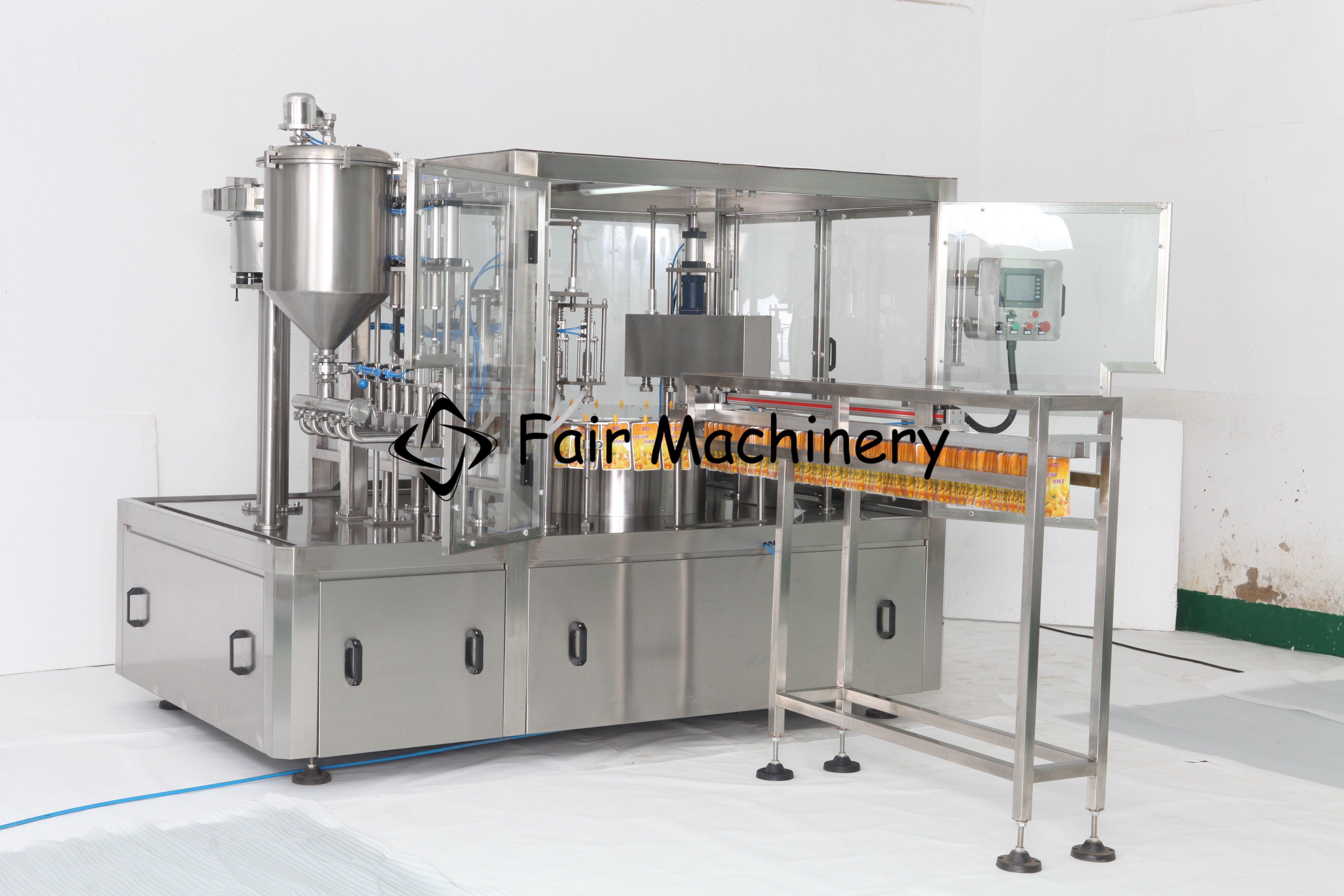

Automatic Tomato sauce, black pepper sauce, salad dressing filling and capping machine

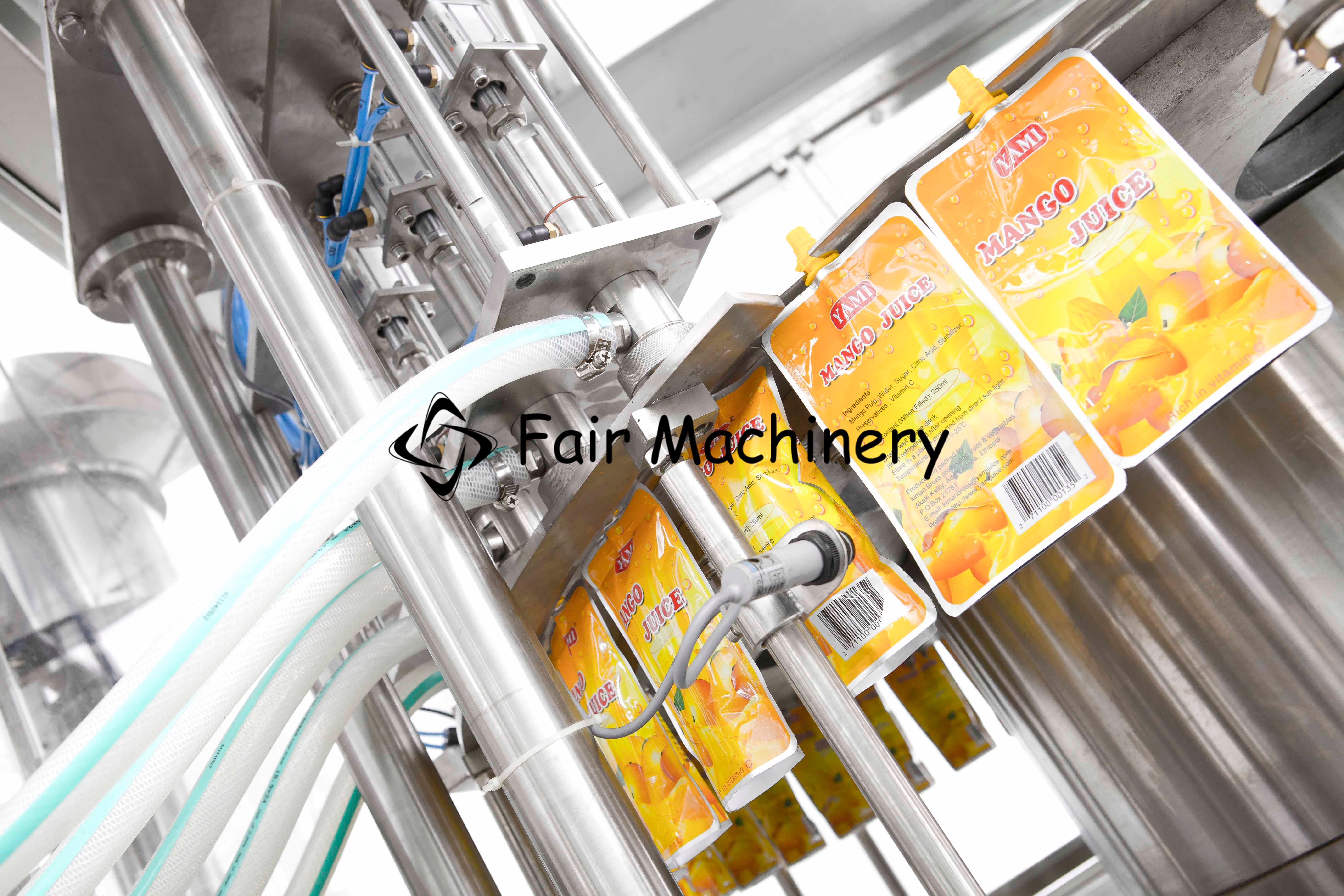

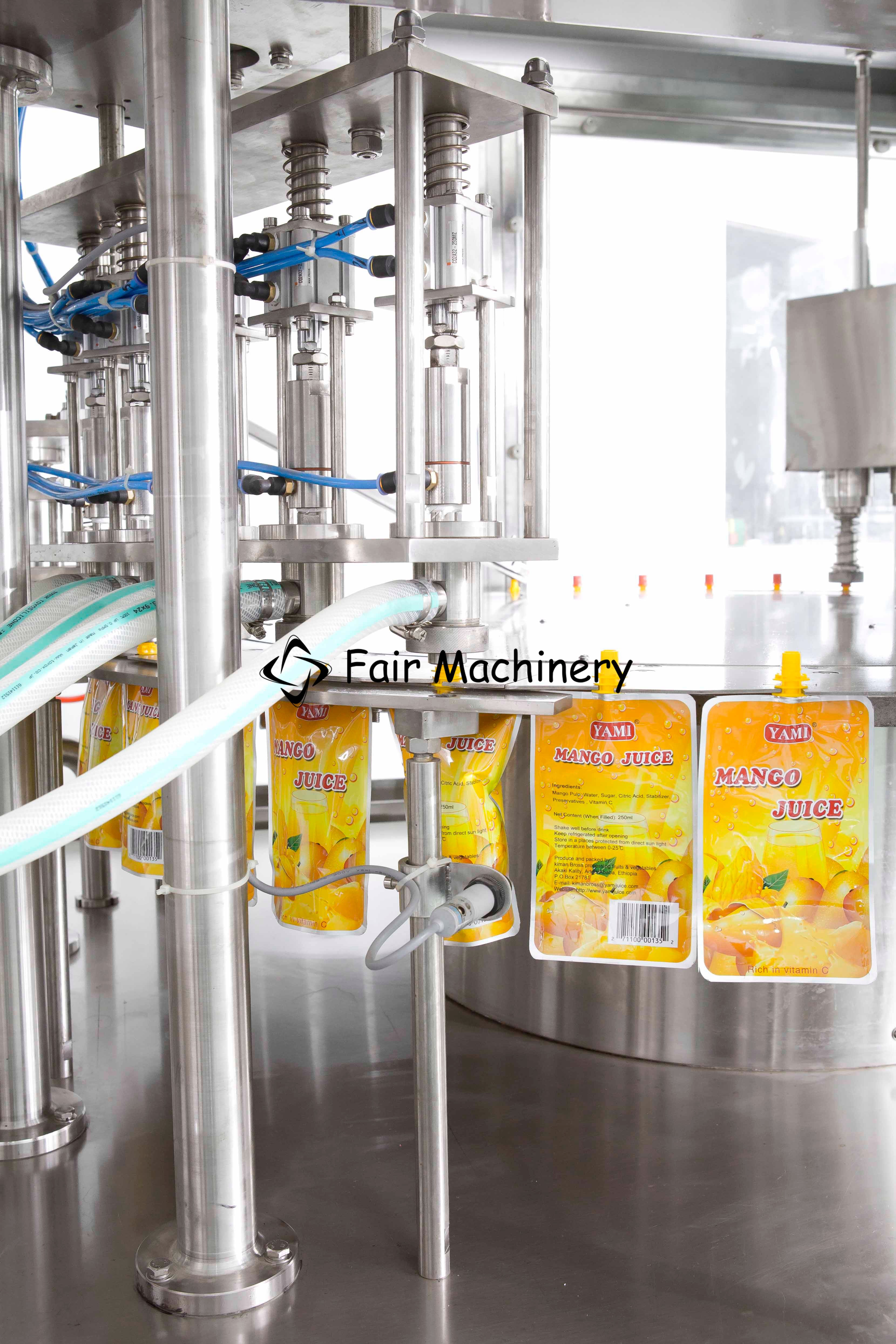

This model is suitable for filling and capping of self-supporting bags, fruit juices, sucking and freezing, chili sauce, ketchup, condiments, beverages, ice cream, daily chemicals, etc. This model has the characteristics of fast cap arranging speed and high cap precision. This machine realizes the functions of no bag, no filling, and automatic shutdown when the cover is missing.
Process flow:
automatic bag hanging→automatic filling→liquid level automatic control→automatic cover and cover→automatic bag withdrawal is a fully automatic operation.
| Model | FFC-5B-5 |
| Filling capacity (ML) | ≤350ml |
| Filling speed (BPH) | 4200-6000 B／H |
| Power supply (VAC) | 220V 380V 50-60Hz |
| Power (KW) | 4.0 |
| Dimensions (MM) | 2500x1500x1800 |
| Net weight (KG) | 880 |
