| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE, ISO, SGS |
| Model Number: | FCF-8A |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Key Selling Points: | Fully Automatic, High-accuracy, Easy To Operate | Application: | Beverage, Food |
|---|---|---|---|
| Driven Type: | Pneumatic | Packaging Type: | CANS, Bottles, Stand-up Pouch, Film, Foil, Pouch |
| Packaging Material: | Paper, Plastic, Glass | Function: | Sealing, Film Cutting |
| Filling Accuracy: | ±1% | Warranty: | 1 Year |
| Core Components: | PLC, Engine, Motor | Voltage: | 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ |
2.This Machine Is Suitable For The Packaging Of PP, PE,PET, Aluminum Foil And Other Materials, Suitable For The Sealing
3.The Whole Machine Can Be Produced with PLC, Pneumatic Control Component And Intelligent Digital Display Temperature Control System.
4.This kind of machine will be produced according to customer’s requirements; Picture just for reference.

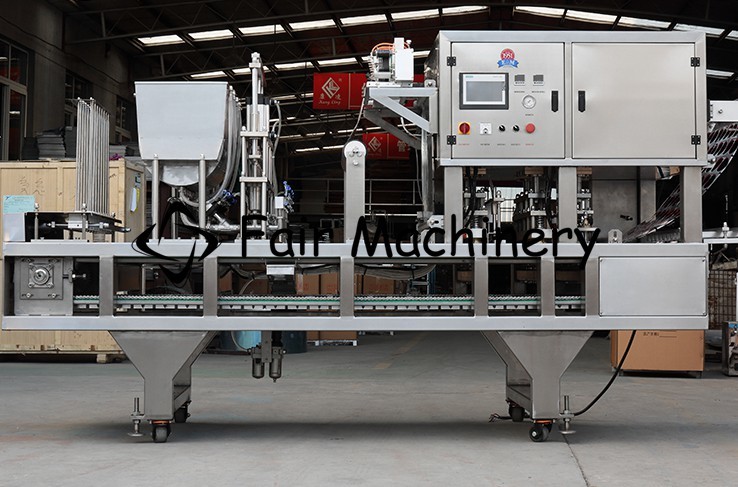

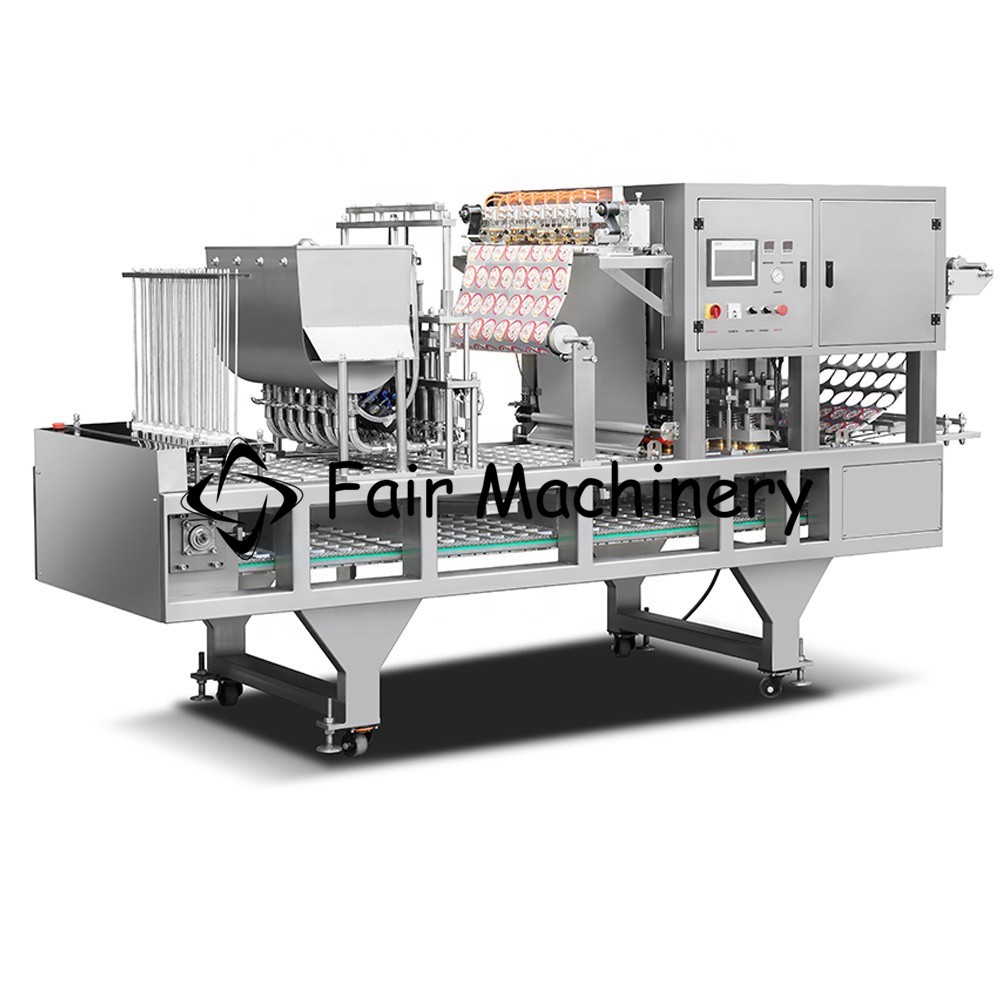

5.This machine is specially designed for cups with rolled film or pre-cut lid products (or other kinds of liquid products, such as fruit juice, water and even granule and powder and others etc. ) to be filled and sealed.
6.This kind of machine can deal with some big cup need high capacity, the groove of the conveyer can be made up to a dozen and more .
| Model | FCF-8A |
| Power (KW) | 8.5 KW |
| Heat sealing power | 7.5 KW |
| Capping speed (BPH) | 7200 B/Hour |
| Power supply (VAC) | 380V 220V 50/60HZ |
| Dimensions (MM) | 3900x950x1700 |
| Net weight (KG) | 1000 |
