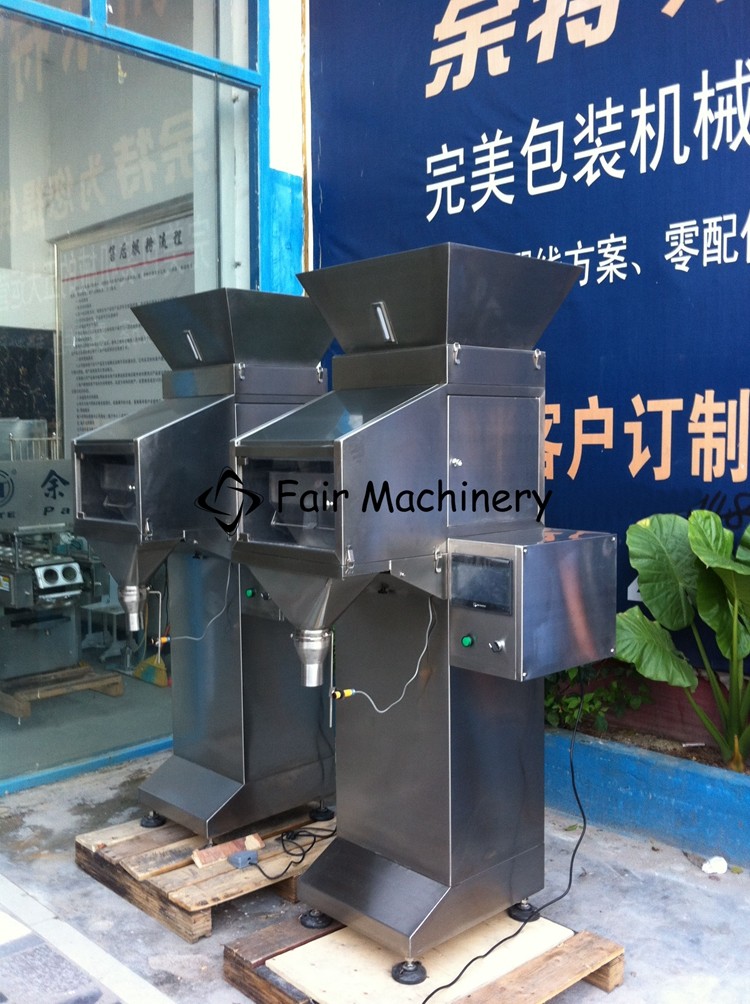

0.4mpa 60HZ Granules Filling Machine Auto Weighing Filling Sealing 8B/Min

Basic Information
Place of Origin: China
Brand Name: Fair Machinery
Certification: CE, ISO, SGS
Model Number: FFG-50M
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union. L/C
Supply Ability: 100 pcs per month
Detail Information
Automatic Grade: Semi-automatic Key Selling Points: High Accuracy, Easy Operate, Low Cost
Equipped With Gas Source: 0.4-0.6mpa Clean And Stable Gas Source Application: Chemical, Food, Machinery & Hardware, MEDICAL
Core Components: PLC Packaging Material: Metal, Plastic
Packaging Type: Bags, Bottles, CANS, Cartons, Pouch, Stand-up Pouch Filling Material: Granule
Filling Speed: 800-1500 Bags/hour Function: Weighing And Filling
Highlight:

0.4mpa Granules Filling Machine

,

60HZ Granules Filling Machine

,

8B/Min auto weighing filling and sealing machine


Product Description

weighing particle filling machine granules filling machine fully automatic machine

Product description:

This machine is mainly composed of four parts: automatic weighing device, conveying device, explosion-proof device and computer control. The utility model has the advantages of reasonable structure, beautiful appearance, stable operation, energy saving, convenient operation and weighing characteristics. The specially designed feeding and bucket type metering, while unloading the bag, does not affect the blanking measurement. It can save one-third of the working time, fast packaging speed and high packaging precision. The main machine adopts fast, medium and slow three-speed feeding and special feeding structure, advanced digital frequency conversion technology, sampling processing technology and anti-interference technology, and realizes automatic error compensation and correction.

The machine uses a high-stability, high-precision load cell and weighing module; the interface is simple to operate and the display is intuitive; the independent package weight input and weighing weight display window, the display window is displayed with high-brightness LED; the menu operation is simple and intuitive. Friendly; manual assisted bag, pneumatic bag; independent weighing system weighing, high weighing, fast speed, frequency converter speed regulation.



Technical parameters:






Model FFG-50M
Filling capacity (KG) 5-50 KG
(Can be customized according to customer requirements)
Filling speed (BPM) 1-8 B/Min
Power supply (VAC) 220/380V 50/60HZ
Power (KW) 1.8
Dimensions (MM) 2300x1000x1600
Net weight (KG) 260

0.4mpa 60HZ Granules Filling Machine Auto Weighing Filling Sealing 8B/Min 0
