Automatic Grade: | Semi Automatic | Equipped With Gas Source: | 0.4-0.6mpa Clean And Stable Gas Source |
---|---|---|---|
After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support | Application: | Chemical, Food, Machinery & Hardware, MEDICAL |
Core Components: | PLC, Pressure Vessel, Engine, Gearbox | Packaging Material: | Metal, Plastic |
Packaging Type: | Bags, Bottles, CANS, Cartons, Pouch, Stand-up Pouch | Filling Material: | Granule |
Filling Speed: | 800-1500 Bags/hour | Function: | Weighing And Filling |
High Light: | 30BPM Coffee Filling Machine,380V Coffee Filling Machine,800bags/H Automatic Weighing Packing Machine |

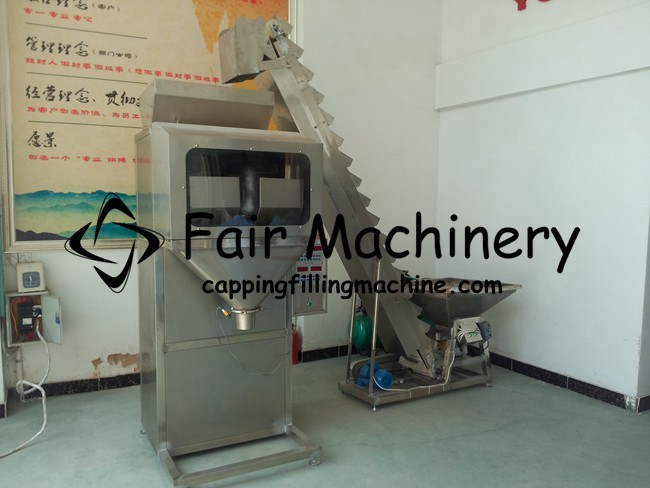

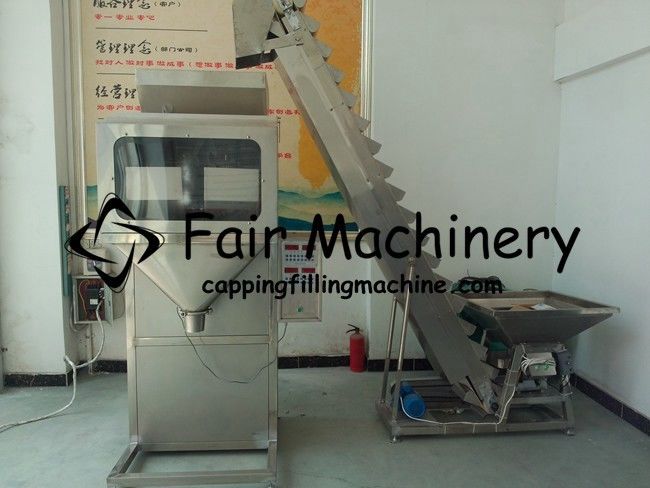

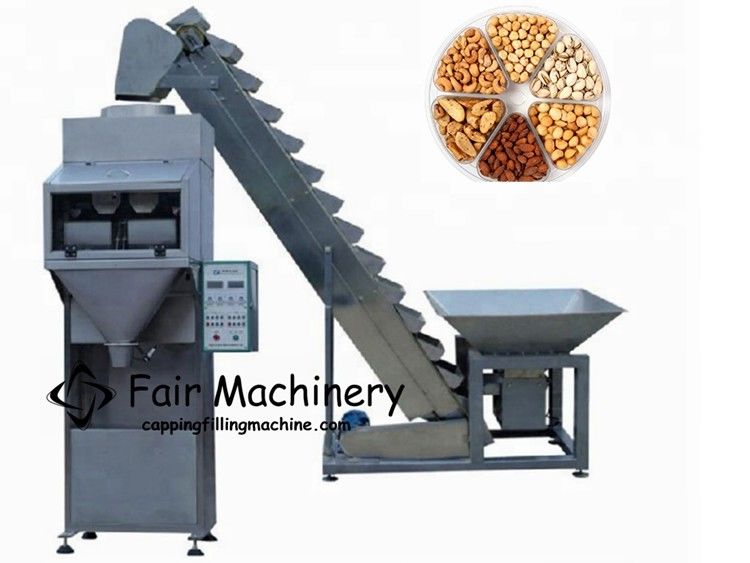

This machine is suitable for automatic packaging of granular powder materials in food, pharmaceutical, chemical, pesticide and other products. Such as: peanuts, melon seeds, potato chips, peanuts, oatmeal, penghua food, desiccant, washing powder, broken tea, granules, coffee sugar, white sugar and various non-sticky loose particles and so on.
1. Automatically complete the measurement and filling work.
2. Chinese display screen control system, all stainless steel body, input the number of grams needed to be filled to start working, and the control system automatically optimizes and matches each action to achieve the ideal filling speed.
3. Stepless adjustment speed; packaging speed can be steplessly adjusted within the rated range, no need to replace parts
Model | FSA-1000 |
Filling capacity (Gram) |
100-1000 (Can be customized according to customer requirements) |
Filling speed (BPM) | 1-30 |
Power supply (VAC) | 220/380V 50/60HZ |
Power (KW) | 0.5 |
Dimensions (MM) | 740×760×1720 |
Net weight (KG) | 160 |
Materials sample:
