| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE, ISO, SGS |
| Model Number: | FCF-14A |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Automatic |
|---|---|---|---|
| Key Selling Points: | Fully Automatic, High-accuracy, Easy To Operate | Application: | Beverage, Food |
| Driven Type: | Pneumatic | Packaging Type: | CANS, Bottles, Stand-up Pouch, Film, Foil, Pouch |
| Packaging Material: | Paper, Plastic, Glass | Function: | Sealing, Film Cutting |
| Filling Accuracy: | ±1% | Warranty: | 1 Year |
| Core Components: | PLC, Engine, Motor | Voltage: | 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ |
| After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support | ||
| High Light: | AC220V Ultrasonic Tube Sealing Machine,20pcs/Min Ultrasonic Tube Sealing Machine,0.8Mpa Cosmetic Tube Filling And Sealing Machine |
||

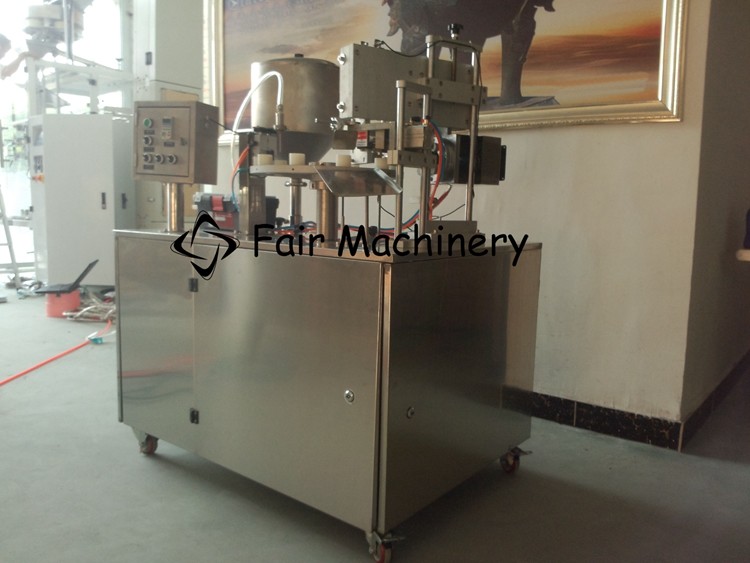

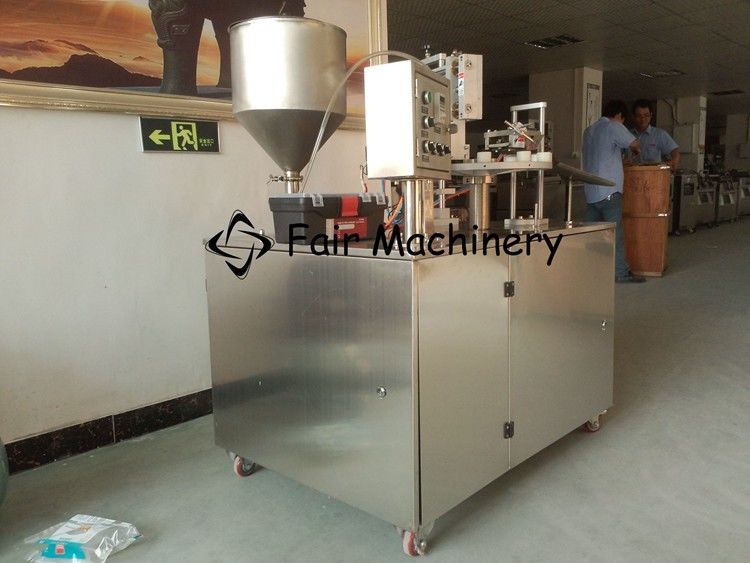

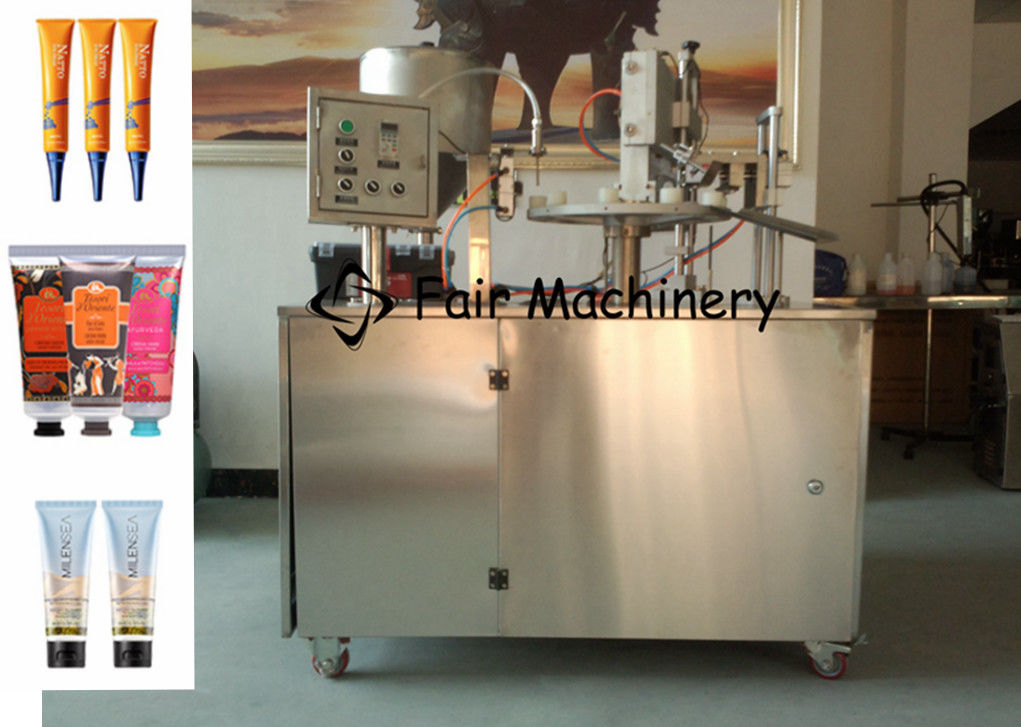

Semi-automatic tube filling and sealing machine is used for filling of polyethylene and laminated tubes with gels, creams or other fluids, sealing them with hot air, stamping date and / or batch No. and cutting excess plastic on the tube ending, which arises during the tube sealing.
This machine is made of stainless steel, adopts pneumatic system, the filling volume and speed can be adjusted easily. Except put the empty tubes by hand, all the workstages, such as, filling, sealling, cutting, printing codes, etc, are done by the machine automatically. This machine can fill various liquids, skin care cream,paste, sauce, ketchu, jam, mustard, ointment, medicine paste, tooth paste, etc. into plastic tubes or laminated material tubes and seal.
| Name | Semi Automatic Tube Filling Sealing Machine |
| Tubes material | Laminated material, or PP, PVC, etc. |
| Products | Liquid, cream, or paste |
| Volume | 10-450ml |
| Filling | Cylinder pump |
| Precision | ±1% |
| Tube size | Caliber:15-50mm, length 50-220mm |
| Pneumatic | 0.6-0.8Mpa, 0.2 CBM/min |
| Capacity | 20-35 pcs/min (Up to the size of the tubes and the filling volumes in each tube) |
| Voltage | AC220V, 1 phase, 50/60Hz. |
| Power | 3.3Kw. |
| Material | Stainless steel 304 |
| G.W. | 450Kg. |
| Dimension | L1250*W1050*H1600mm |
