Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Automatic |
---|---|---|---|
Key Selling Points: | Fully Automatic, High-accuracy, Easy To Operate | Application: | Beverage, Food |
Driven Type: | Pneumatic | Packaging Type: | CANS, Bottles, Stand-up Pouch, Film, Foil, Pouch |
Packaging Material: | Paper, Plastic, Glass | Function: | Sealing, Film Cutting |
Filling Accuracy: | ±1% | Warranty: | 1 Year |
Core Components: | PLC, Engine, Motor | Voltage: | 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ |
After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support | ||
High Light: | 1.8Kw Aluminum Tube Sealing Machine,1PH Ointment Tube Filling Machine,0.2CBM/Min Ointment Tube Filling Machine |

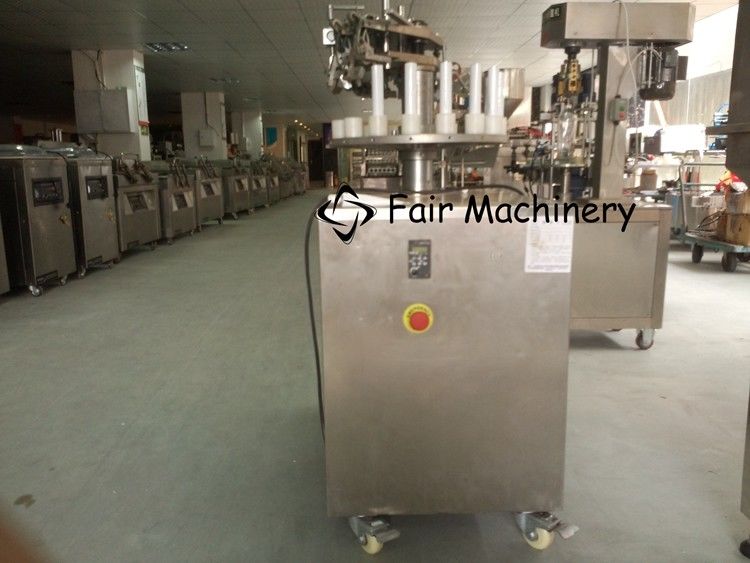

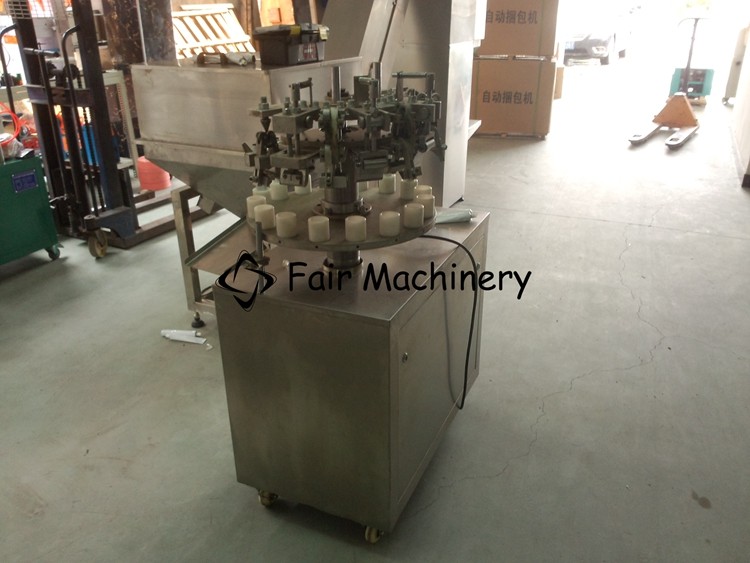

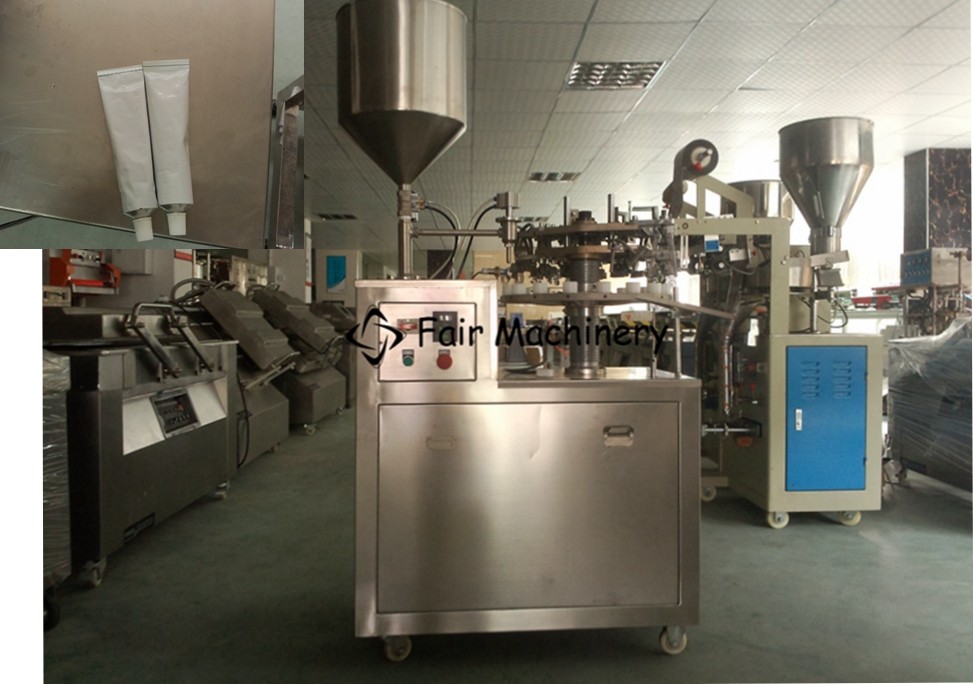

Name | Semi Automatic Tube Filling Sealing Machine |
Tubes material | Laminated material, or PP, PVC, etc. |
Products | Liquid, cream, or paste |
Volume | 10-450ml |
Precision | ±1% |
Tube size | Caliber:15-50mm, length 50-220mm |
Pneumatic | 0.6-0.8Mpa, 0.2 CBM/min |
Capacity | 20-35 pcs/min (Up to the size of the tubes and the filling volumes in each tube) |
Voltage | AC220V, 1 phase, 50/60Hz. |
Power | 1.8Kw. |
Material | Stainless steel 304 |
G.W. | 300Kg. |
Dimension | L1200xW750xH1500mm |
