Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Automatic |
---|---|---|---|
Key Selling Points: | Fully Automatic, High-accuracy, Easy To Operate | Packaging Material: | Paper, Plastic, Glass |
Function: | Sealing, Film Cutting | Filling Accuracy: | ±1% |
Warranty: | 1 Year | Core Components: | PLC, Engine, Motor |
Voltage: | 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
High Light: | 10ml Tube Filling Sealing Machine,35pcs/Min Tube Filling Sealing Machine,AC220V toothpaste filling and sealing machine |

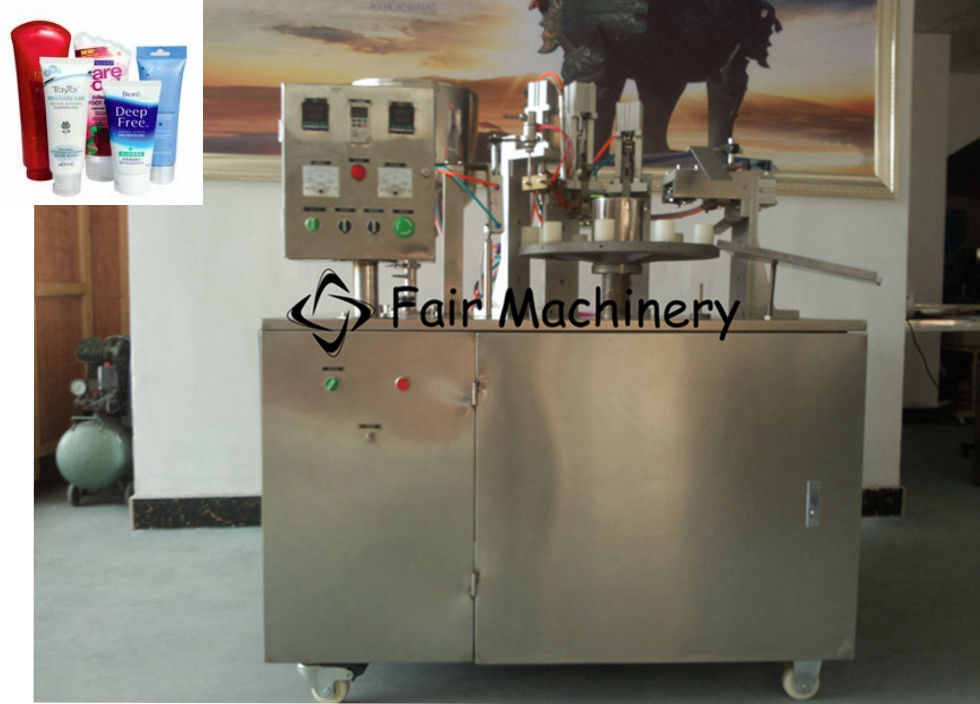

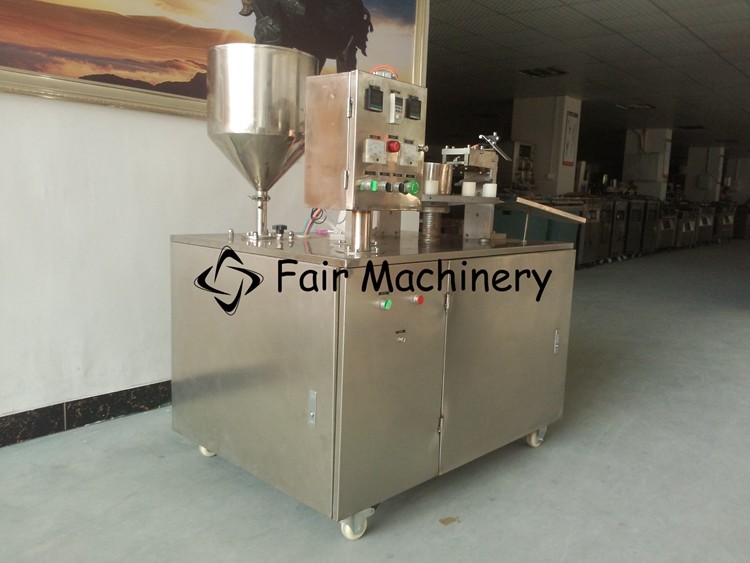

Name | Semi Automatic Tube Filling Sealing Machine |
Tubes material | Laminated material, or PP, PVC, etc. |
Products | Liquid, cream, or paste |
Volume | 10-450ml |
Filling | Cylinder pump |
Precision | ±1% |
Tube size | Caliber:15-50mm, length 50-220mm |
Pneumatic | 0.6-0.8Mpa, 0.2 CBM/min |
Capacity | 20-35 pcs/min (Up to the size of the tubes and the filling volumes in each tube) |
Voltage | AC220V, 1 phase, 50/60Hz. |
Power | 3.3Kw. |
Material | Stainless steel 304 |
G.W. | 450Kg. |
Dimension | L1250*W1050*H1600mm |
FAQ:
F: What is tube filling and sealing machine?
A: Tube filling and sealing machine is used for filling of polyethylene and laminated tubes with gels, creams or other fluids, sealing them with hot air, stamping date and / or batch No. and cutting excess plastic on the tube ending, which arises during the tube sealing.
