2.8KW 0.4mpa Double Side Sticker Labeling Machine Plastic Bottle Printing 20PCS/Min

Basic Information
Place of Origin: China
Brand Name: Fair Machinery
Certification: CE, ISO, SGS
Model Number: FLB-200A
Minimum Order Quantity: 1
Packaging Details: wooden packaged
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union. L/C
Supply Ability: 100 pcs per month
Detail Information
Material: 304 Or 316 Stainless Steel Key Selling Points: High Accuracy, Easy Operation
Equipped With Gas Source: 0.4-0.6mpa Clean And Stable Gas Source Driven Type: Pneumatic
Application: Food, Beverage, Chemical, Cooking Oil Filling Filling Material: Beer, Milk, Water, Oil, Juice, Other
Packaging Type: CANS, Bottles, Stand-up Pouch, Other Packaging Material: Plastic, Metal, Glass, Other
Warranty: 1 Year After-sales Service: Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support
Highlight:

2.8KW Double Side Sticker Labeling Machine

,

0.4mpa Double Side Sticker Labeling Machine

,

20PCS/Min plastic bottle label printing machine


Product Description

Double Sides Two Sticker automatic labeling machine for plastic glass bottle



The whole double sided labeling machine adopts elaborate DIY design. By eliminating unnecessary complex and heavy machinery, it adopts suit type assembly. The maintenance and servicing can be completed without professionals. When it is necessary to replace the product, just make some simple adjustments, it can be immediately put online for production.



Technical parameters:

Model FLB-700
Labeling speed 20-80 PCS/min
Labeling accuracy ±1 mm
Label max width 200 mm
Label inner diameter 76.2 mm
Label outer diameter 330 mm
Power supply (VAC) 220V 50/60HZ
Power (KW) 2.8
Dimensions (MM) 2800x1200x1600
Net weight (KG) 380

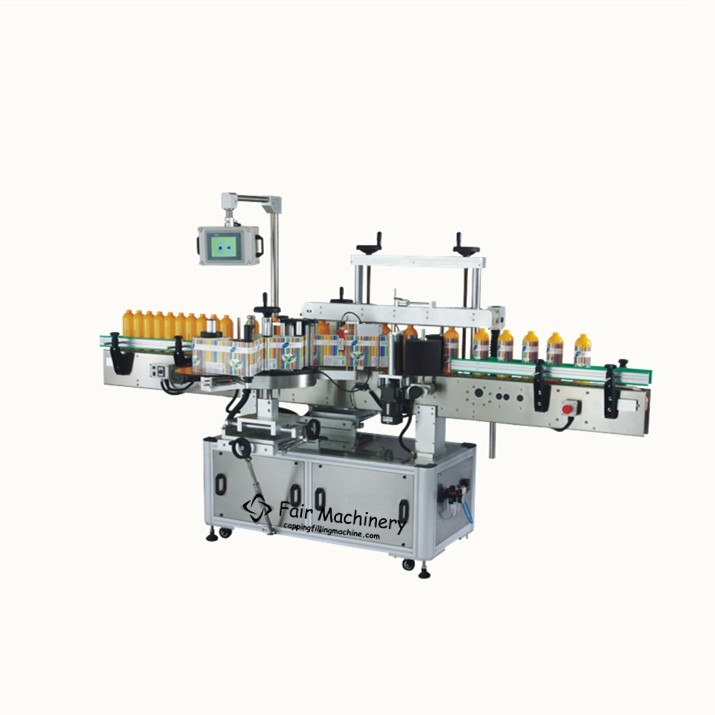

Front view:



2.8KW 0.4mpa Double Side Sticker Labeling Machine Plastic Bottle Printing 20PCS/Min 0

Control panel:
Self-contained alarm display function, internal setting with label installation diagram, easy to operate

Prevent bottle offset structure:
Prevent bottle offsets to ensure accurate label attachment to the bottle. Bottles of different sizes can be accommodated by adjusting the machine.

Electric eye detection structure

Double-sided labeling machine structure

Size adjustment structure:
This structure can be adjusted to accommodate different sized bottles and labels of different sizes.

Sample style:
2.8KW 0.4mpa Double Side Sticker Labeling Machine Plastic Bottle Printing 20PCS/Min 1
