| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE, ISO, SGS |
| Model Number: | FLB-6B |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Semi Automatic |
|---|---|---|---|
| Equipped With Gas Source: | 0.4-0.6mpa Clean And Stable Gas Source | Driven Type: | Pneumatic |
| Application: | Food, Beverage, Chemical, Cooking Oil Filling | Filling Material: | Beer, Milk, Water, Oil, Juice, Other |
| Packaging Type: | CANS, Bottles, Stand-up Pouch, Other | Packaging Material: | Plastic, Metal, Glass, Other |
| Warranty: | 1 Year | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
| Highlight: | 20PCS/Min Round Bottle Labelling Machine,28KG Label Batch Coding Machine,0.75KW Label Batch Coding Machine |
||

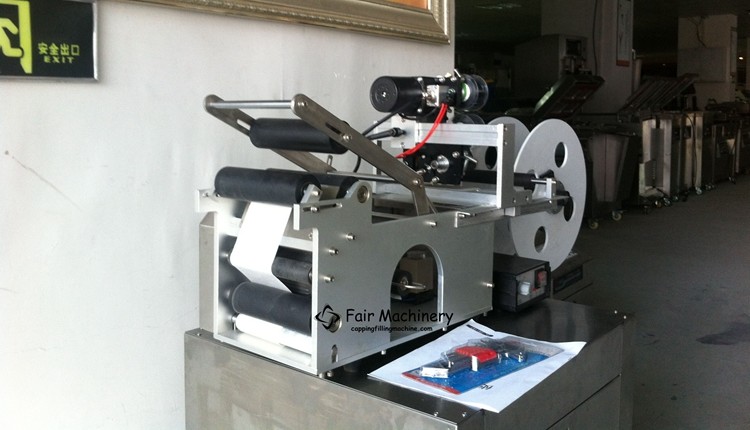

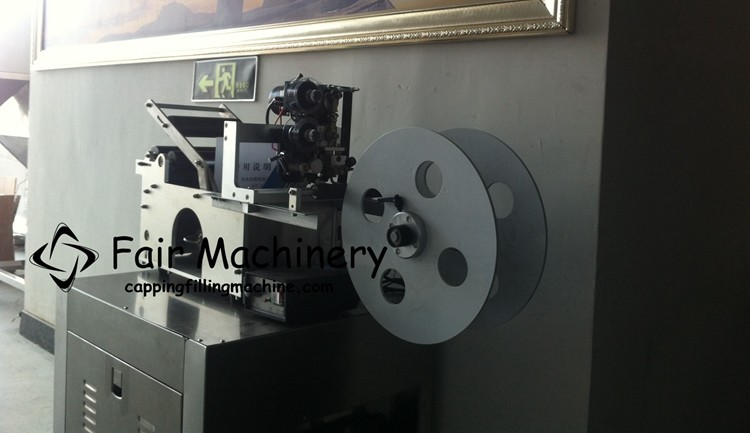

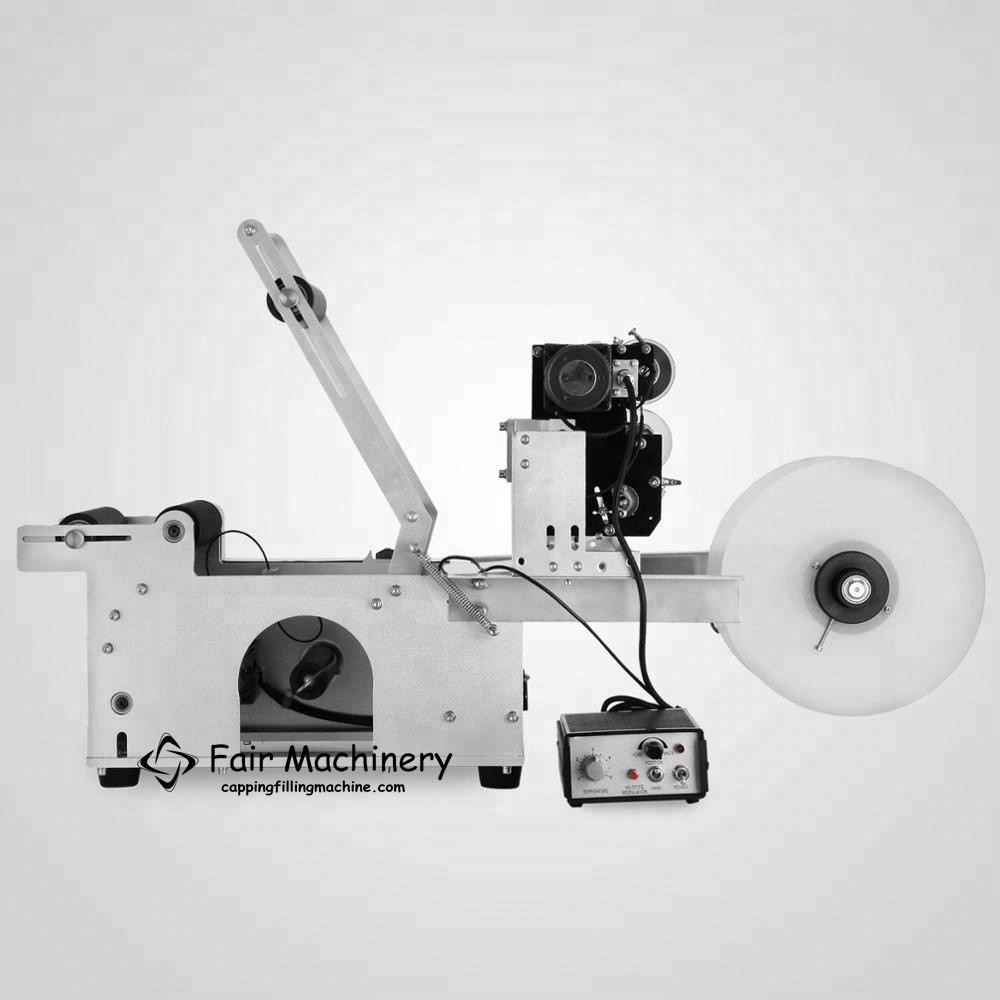

Semi automatic round bottle labeling machine bottle labeling machine with date code printer
work procedures
Put the product into the card position labeling position, manually operate the pressure lever, touch the jog switch, the sensor recognizes the label, realizes the bottle rotation and the labeling action, and completes the labeling operation process: power on → load the entire roll of labels into the labeling machine (Wrap the label) → adjust the parts → check whether it is operating normally → manually put the product into the card position labeling position → manually press the operating lever → the product rotates and the label is applied → the labeling is completed
1. The scope of application, can meet the wide-ranging labeling in the range of 18-150mm, (also can be customized according to the customer's product size)
2. The labeling accuracy is high, and the deviation of the label head and tail joints is ≤±0.5mm
3. Adopts exquisite extrusion type feeding, very easy to couple, automatic labeling
4. Adopt card position adjustment, labeling different objects is simple and simple
5. The synchronous belt is used for synchronization, and the mechanical movement is greatly improved
6. Desktop design, professional structure, compact appearance, powerful function
| Model | FLB-150 |
| Labeling speed | 20-50 PCS/min |
| Labeling accuracy | ±1 mm |
| Label max width | 150 mm |
| Label inner diameter | 76.2 mm |
| Label outer diameter | 330 mm |
| Power supply (VAC) | 220V 50/60HZ |
| Power (KW) | 0.75 |
| Dimensions (MM) | 650x450x450 |
| Net weight (KG) | 28 |
