0.6mpa 150PCS/min Sticker Labeling Machine Automatic Shrink Sleeve Label 3KW

Basic Information
Place of Origin: China
Brand Name: Fair Machinery
Certification: CE, ISO, SGS
Model Number: FLB-300A
Minimum Order Quantity: 1
Packaging Details: wooden packaged
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union. L/C
Supply Ability: 100 pcs per month
Detail Information
Material: 304 Or 316 Stainless Steel Automatic Grade: Automatic
Key Selling Points: High Accuracy, Easy Operation Equipped With Gas Source: 0.4-0.6mpa Clean And Stable Gas Source
Driven Type: Pneumatic Application: Food, Beverage, Chemical, Cooking Oil Filling
Filling Material: Beer, Milk, Water, Oil, Juice, Other Packaging Type: CANS, Bottles, Stand-up Pouch, Other
Packaging Material: Plastic, Metal, Glass, Other After-sales Service: Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support
Highlight:

0.6mpa Sticker Labeling Machine

,

150PCS/Min Sticker Labeling Machine

,

3KW automatic shrink sleeve labeling machine


Product Description

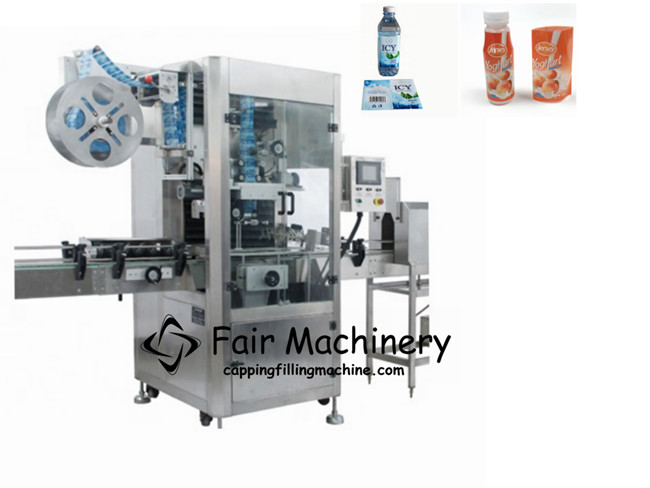

Automatic Shrink Sleeve Label Labeling Machine For Water/Beverage/Coke Bottle



This machine is suitable for various bottle-type juices, tea drinks, dairy products, pure water, condiments, beer, sports drinks and other food and beverage industries. It not only has high precision of the labeling position, but also highlights the perfect bottle type after shrinking. . .

When the bottle electric eye finds that there is a bottle coming over and thinks that it is necessary for continuous production, the bottle screw starts to operate and pushes the bottle (the function of the bottle screw is to divide the bottles that are not equidistant from the initial speed of the new equidistant bottle). When the sleeve electric eye senses that there is a bottle coming, it will immediately transmit the signal to the control center PLC, and send 4 instructions through the PLC: send the label, locate, cut the label, label into the bottle, when the sleeve label ends, the labeling process of a bottle Finish, then enter the label to organize and shrink.



Technical parameters:

Model FLB-250T
Bottle neck diameter 28-38 mm
Bottle body diameter 50~110 mm
Bottle height 80-300
Material thickness 0.038~0.13 mm
Labeling speed
40-150PCS/min
Labeling accuracy ±1 mm
Label length 30-240 mm
Label material PVC PET OPP OPS
Power supply (VAC) 220V 50/60HZ
Power (KW) 3
Dimensions (MM) 1550×1055×2000
Net weight (KG) 240







Film feeding structure:
tail wing combined with electric eye to improve film cutting precision.

Cut film structure:
Adjustable cutter head, rotary cutting, double-sided cutting edge, long life

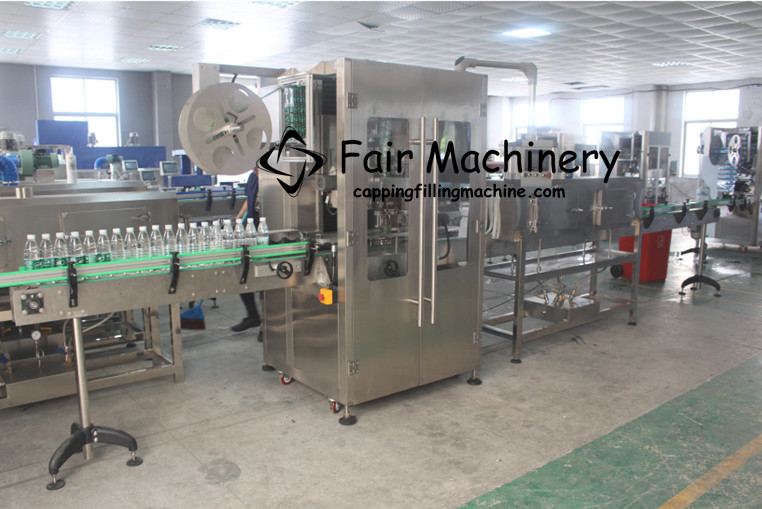

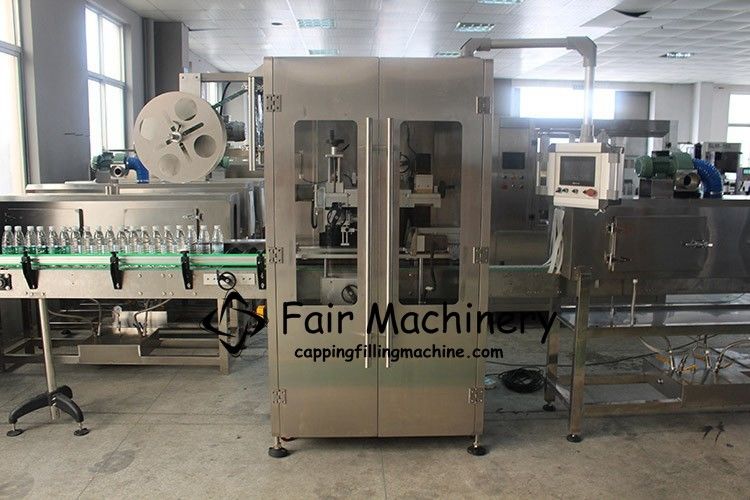

More details:
0.6mpa 150PCS/min Sticker Labeling Machine Automatic Shrink Sleeve Label 3KW 0

0.6mpa 150PCS/min Sticker Labeling Machine Automatic Shrink Sleeve Label 3KW 1

0.6mpa 150PCS/min Sticker Labeling Machine Automatic Shrink Sleeve Label 3KW 2


Sample style:
0.6mpa 150PCS/min Sticker Labeling Machine Automatic Shrink Sleeve Label 3KW 3
0.6mpa 150PCS/min Sticker Labeling Machine Automatic Shrink Sleeve Label 3KW 4
