| Place of Origin: | China |
|---|---|
| Brand Name: | Fair Machinery |
| Certification: | CE, ISO, SGS |
| Model Number: | FLB-2B |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden packaged |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union. L/C |
| Supply Ability: | 100 pcs per month |
| Material: | 304 Or 316 Stainless Steel | Automatic Grade: | Semi Automatic |
|---|---|---|---|
| Key Selling Points: | High Accuracy, Easy Operation, Low Cost | Equipped With Gas Source: | 0.4-0.6mpa Clean And Stable Gas Source |
| Application: | Food, Beverage, Chemical, Cooking Oil Filling | Filling Material: | Beer, Milk, Water, Oil, Juice, Other |
| Packaging Type: | CANS, Bottles, Stand-up Pouch, Other | Packaging Material: | Plastic, Metal, Glass, Other |
| Warranty: | 1 Year | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation, Commmissioning And Training, Field Maintenance And Repair Service, Online Support |
| Highlight: | 40PCS/Min Sticker Labeling Machine,15cm Width Sticker Labeling Machine,60HZ glass bottle labeling machine |
||

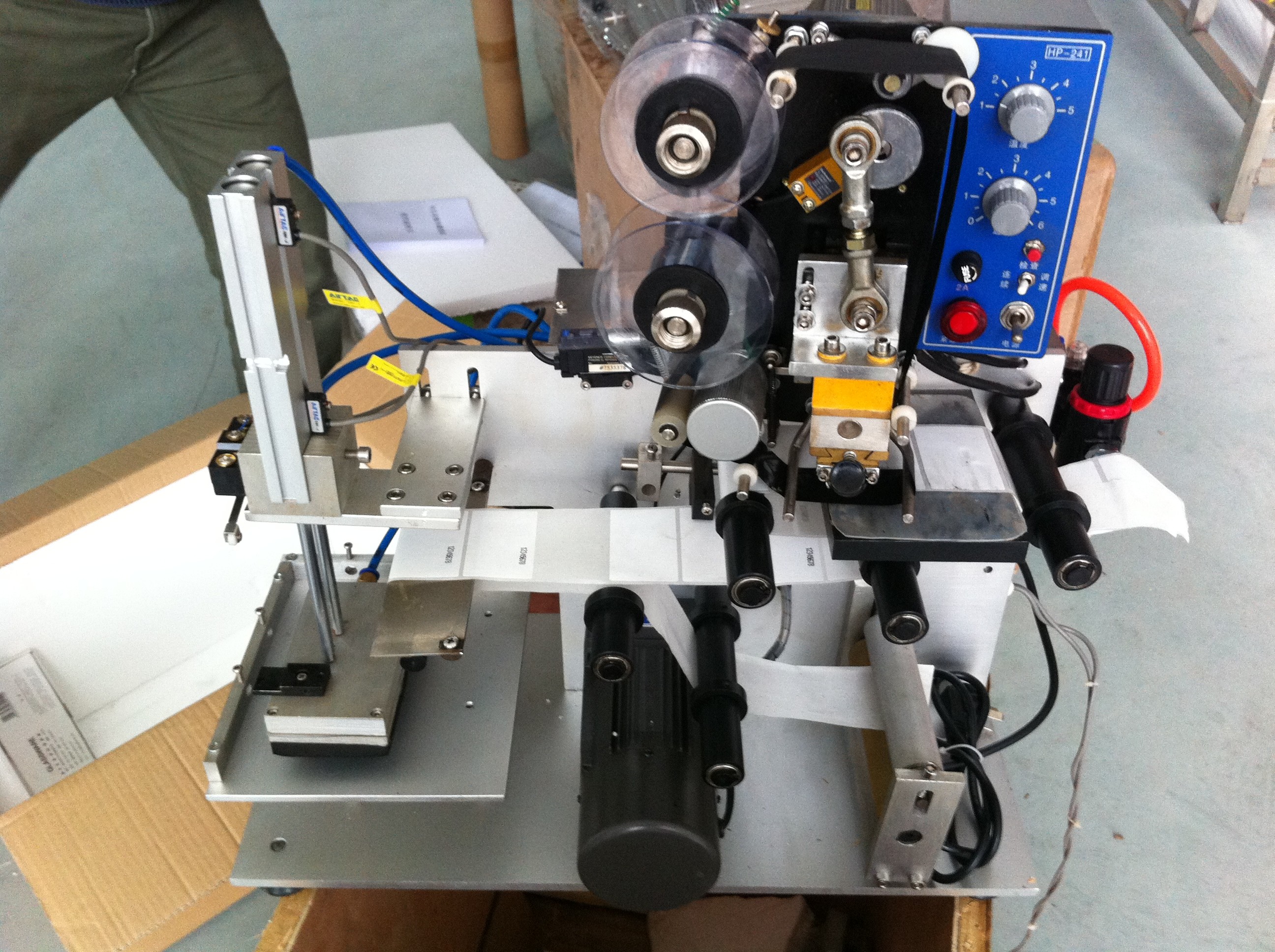

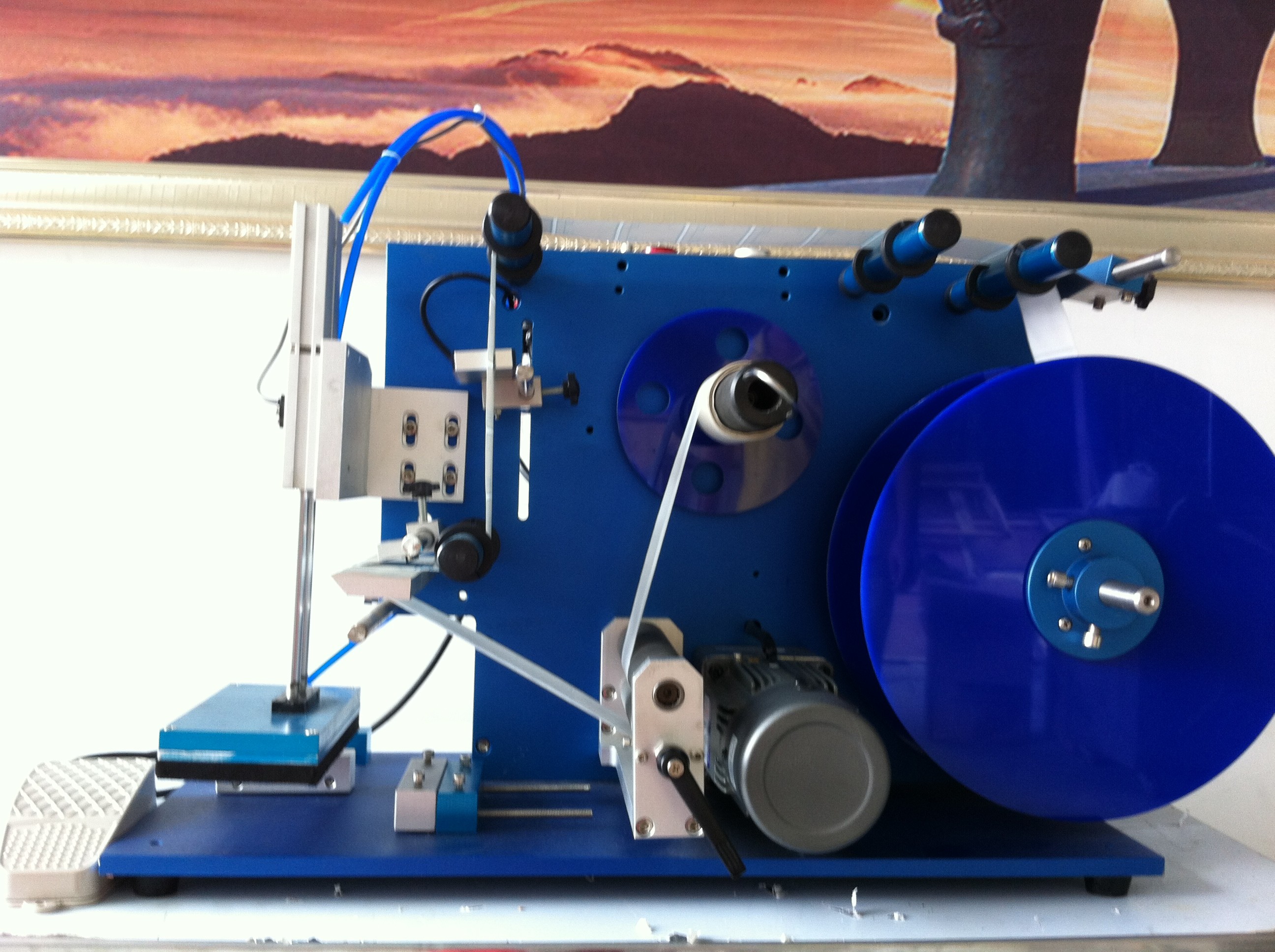

Semi automatic flat labeling machine square bottle labeling machine
Imported high-precision smart electric eye and high-reliability computer chip program controller are used to control the labeling, . The air pressure is used to adsorb the self-adhesive label on the label head.Labeling is carried out by the labeling head cylinder.
Scope of application:
1. Flat labeling of various objects.
2. Labeling on the flat surface of square bottles of cosmetics and medicines.
3. Labels or anti-counterfeit labels on the flat surface of various boxes.
4. Labeling on the surface of LCD screens and electronic components is widely used in flat labeling and filming in cosmetics, daily chemical, electronics, food, medicine and other industries.
| Model | FLB-2B |
| Labeling speed | 20-50 PCS/min |
| Labeling accuracy | ±1 mm |
| Label max width | 150 mm |
| Label inner diameter | 76.2 mm |
| Label outer diameter | 300 mm |
| Power supply (VAC) | 220V 50/60HZ |
| Power (KW) | 0.75 |
| Dimensions (MM) | 300x200x400 |
| Net weight (KG) | 28 |
